Donovan Bullet Aluminium Tarp System is designed to cover dump bodies up to 23 feet long.

The Tarp System comes in two variants – one with straight arms and the other with 30° angled arms, both made of anodized aluminum. This material is 40% lighter than steel and does not rust.

The tarp moves smoothly on an extruded aluminum roller bar, powered by the Durabuilt™ 12V direct-drive electric motor with rotary switch. (The motor is backed by a three-year full replacement warranty.)

Optional upgrades include 40-amp Durabuilt™ rocker switch kit with solenoid, wind deflectors, pivot arm rests and spring trap and tarp trap hold-downs. Approximate shipping weight: 150 lbs.

Standard  Features:

• Extruded Aluminum Roller Bar with Side Plates
• Polished Aluminum 2-Piece Adjustable Pivot Arms
• Durabuilt™ Motor with 3-Year Warranty
• Rotary Switch
• High-Mount Compatible – Up to 23′ Only

Not included in the kit:

• Tarps Sold Separately;

Additional Tarp System Options*

• P/N 1801919 – Aluminum Wind Deflector – 1 Pc.
• P/N 1801999 – Aluminum Arm Rest Kit
• P/N 1128260 – Spring Trap II Hold-Down Kit
• P/N 1125250 – Arm-Lok™ Kit – For Trucks
• P/N 1125800 – Arm-Lok™ Kit – For Trailers
• P/N 1801490 – Tarp Trap Hold-Down Kit
• P/N 1801935 – Durabuilt™ Rocker Switch Upgrade
  *Additional options may not be available for all applications.

Downloads PDF:

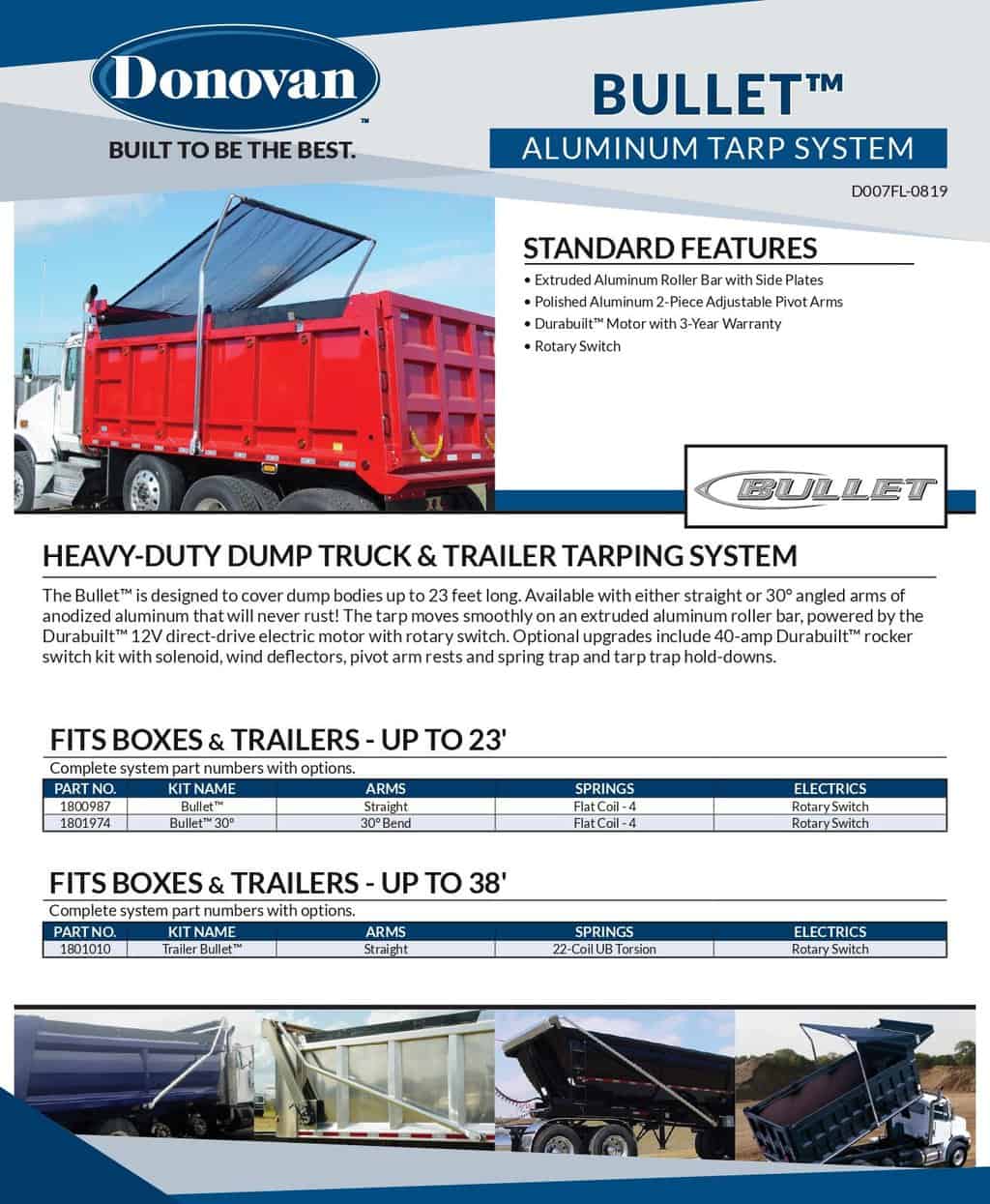

• Donovan Bullet Product Flyer
• Donovan Bullet Owners Manual
