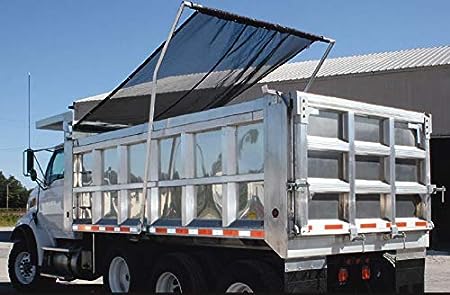

Donovan Flash™ is the toughest dump body covering system on the planet, engineered for both durability and superior safety. The side mount spring assembly features five springs per side. An exclusive extra-strong stamped-steel spring enclosure, dubbed “the clamshell” for its impressive closing capabilities, protects the springs from rocks, mud and debris. A two-part stamping process eliminates welds and contributes to a more indestructible product, and the heavy-duty Grade 8 spring pin will not break.

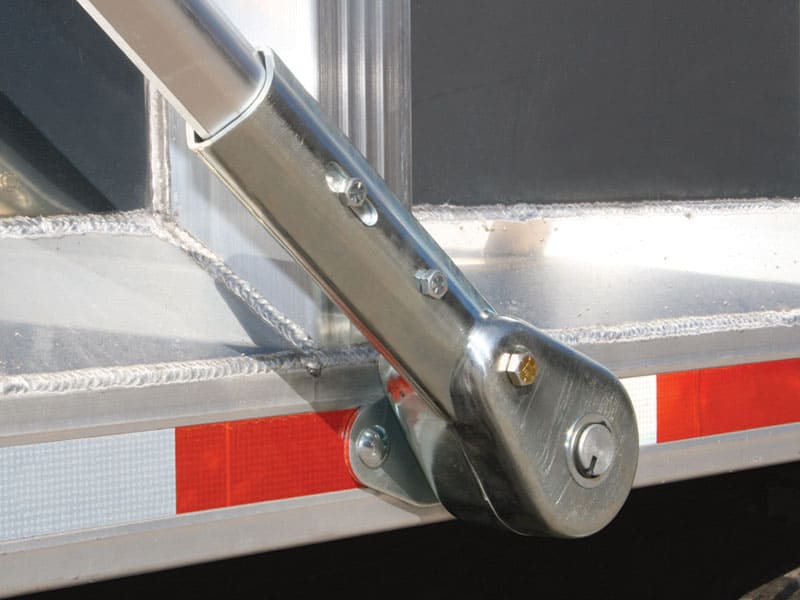

Pivot arms are thick-walled and guaranteed unbreakable. The professional, high-polish zinc protective coating protects the system from corrosive environments.

The dependable Durabuilt™ 12V direct-drive electric motor has an in-cab rotary switch for operator convenience. (The motor comes with a three-year full replacement warranty.)

Donovan Flash Tarp System comes in eight variations:

FOR BOXES & TRAILERS UP TO 23′

• 1801927, Flash, Straight Arm, 5-Spring
• 1801945, Flash, Bent Arm, 5-Spring
• 1800427, Flash, Straight Arm, Underbody Spring
• 1800495, Flash, Bent Arm, Underbody spring

FOR BOXES & TRAILERS UP TO 38′

• 1800318, Flash 38, Straight Arm, Up to 38′ Long X 96″ Wide, Underbody Spring
• 1803942, Flash 38, Straight Arm, Up to 38′ Long X 102″ Wide, Underbody Spring

FOR BOXES & TRAILERS UP TO 41′

• 1801534, Flash 41, Straight Arm, Up to 41′ Long X 96″ Wide, Underbody Spring
• 1808911, Flash 41, Straight Arm, Up to 41′ Long X 102″ Wide, Underbody Spring

Standard Features:

• Extruded Aluminum Roller Bar with Side Plates
• Aluminum High-Gloss Pivot Arms
• Durabuilt™ Motor with 3-Year Warranty
• Rotary Switch
• Assembled Housings

Not included in the kit:

• Tarps Sold Separately;

Additional Tarp System Options*

• P/N 1801919 – Aluminum Wind Deflector – 1 Pc.
• P/N 1801999 – Aluminum Arm Rest Kit
• P/N 1808506 – Straight Tension Arm
• P/N 1808507 – 30° Bend Tension Arm
• P/N 1128260 – Spring Trap II Hold-Down Kit
• P/N 1801490 – Tarp Trap Hold-Down Kit
• P/N 1125250 – Arm-Lok™ Kit – For Trucks
• P/N 1125800 – Arm-Lok™ Kit – For Trailers
• P/N 1801377 – Dual Pole Conductor Plug Kit
• P/N 1801935 – Durabuilt™ Rocker Switch Upgrade
  *Additional options may not be available for all applications.

Downloads PDF:

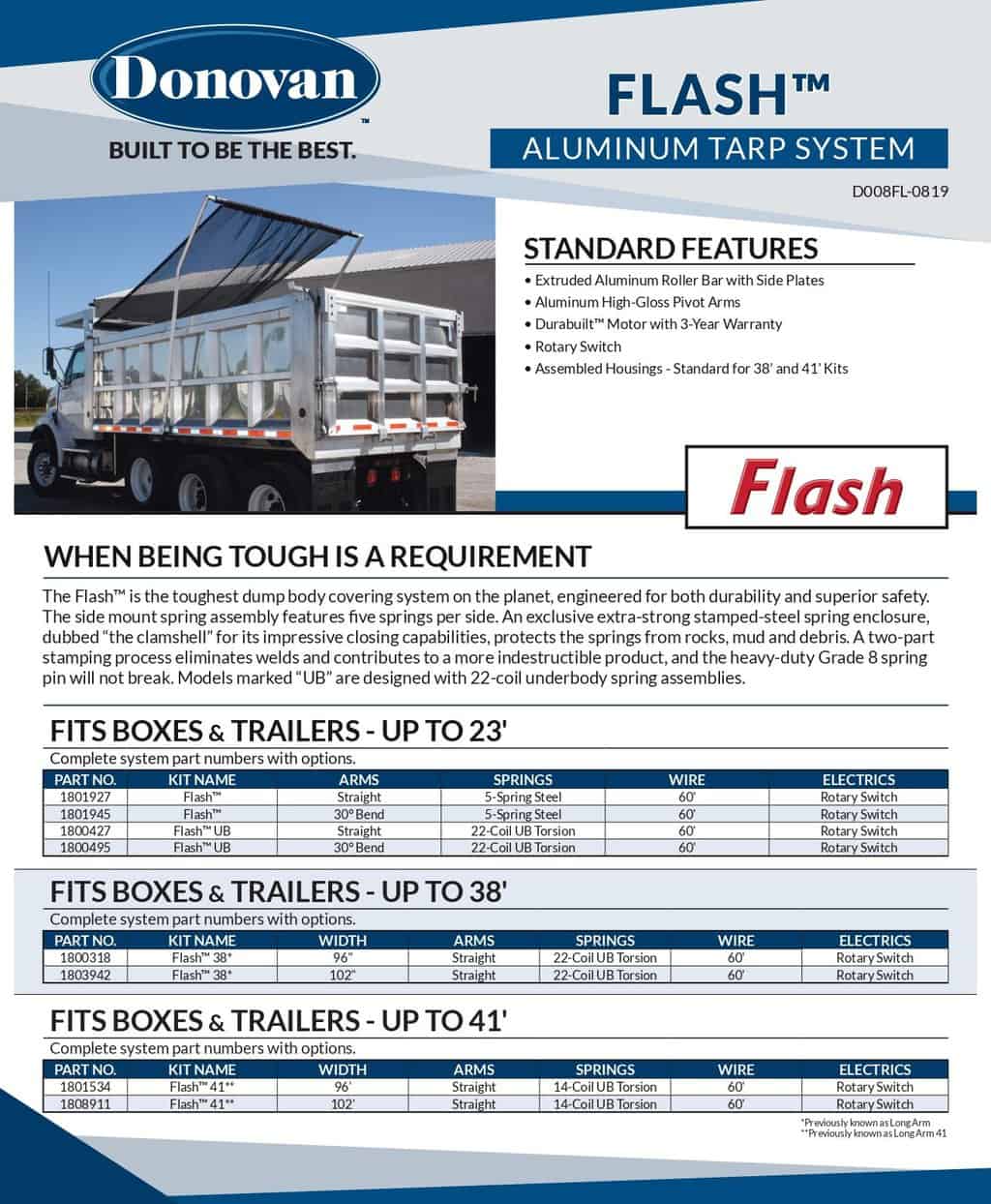

• Donovan Flash Tarp Systems Product Flyer
• Donovan  Flash Tarp Systems Owners Manual
