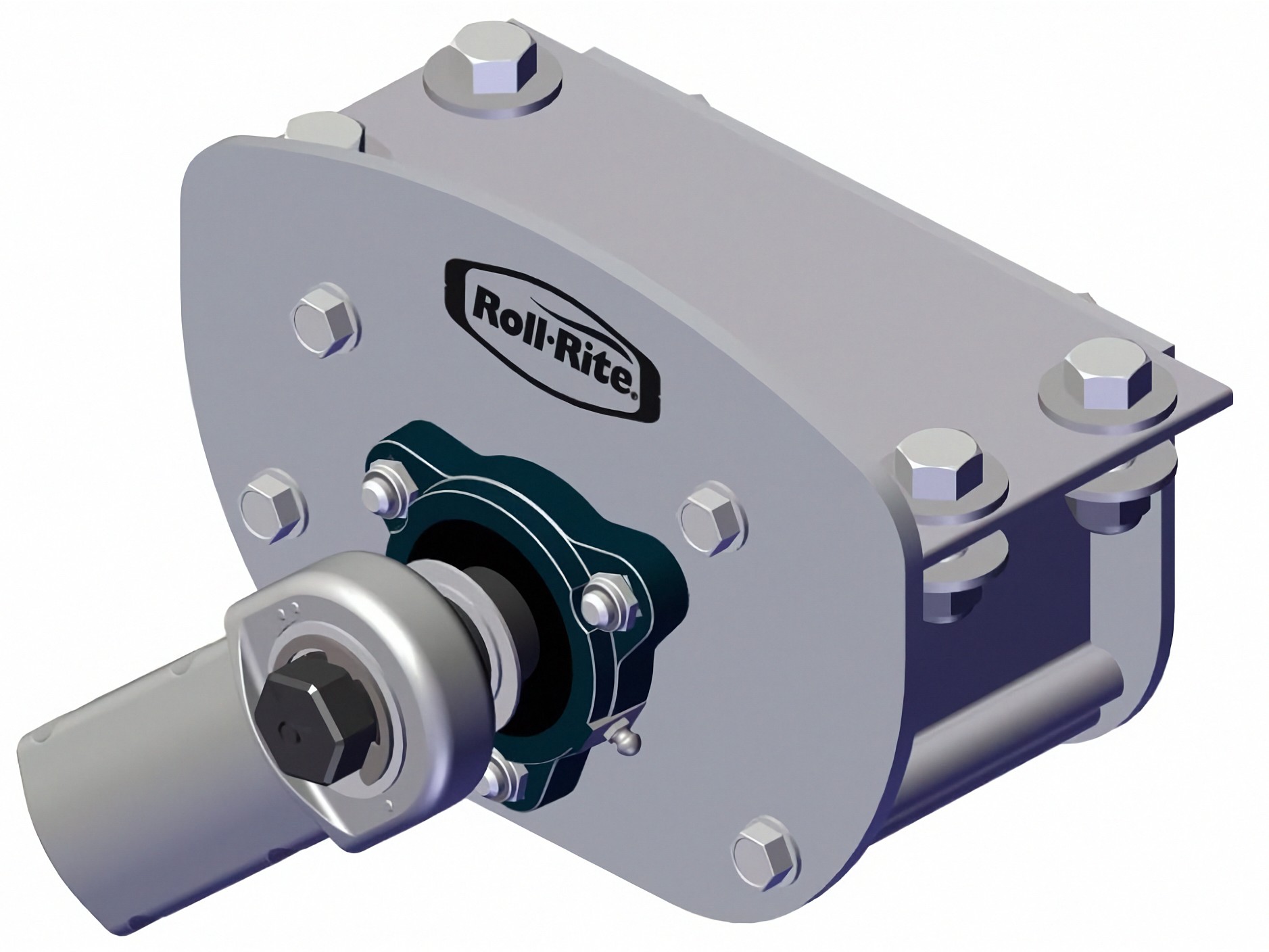

Roll Rite 103296 Pivot, UB Assembly – 6-Spring Passenger Side is a genuine OEM Roll Rite pivot assembly designed for 6-spring underbody mount tarp systems. This Passenger -side pivot assembly supports the tarp arm mechanism and provides smooth pivot movement for reliable tarp operation on dump truck tarp systems.

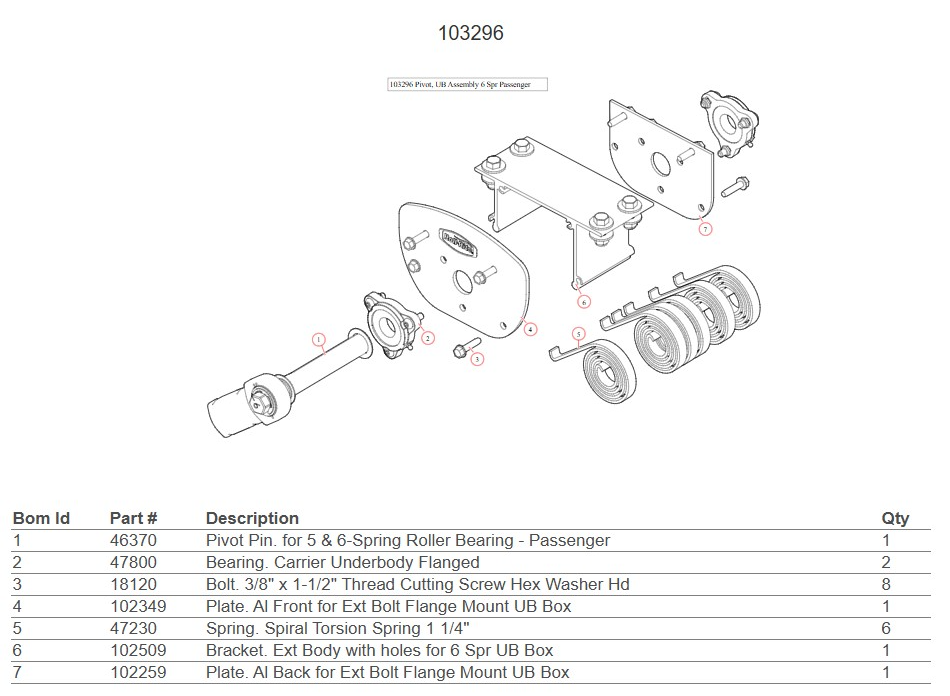

Includes

• (1) 46370 – Pivot Pin for 5 & 6 Spring Roller Bearing – Passenger Side
• (2) 47800 – Carrier Underbody Flanged Bearings
• (8) 18120 – 3/8″ × 1-1/2″ Thread Cutting Hex Washer Head Bolts
• (1) 102349 – Aluminum Front Plate for Ext Bolt Flange Mount UB Box
• (6) 47230 – 1-1/4″ Spiral Torsion Springs
• (1) 102509 – External Body Bracket with Holes for 6 Spring UB Box
• (1) 102259 – Aluminum Back Plate for Ext Bolt Flange Mount UB Box

Product Overview

• Genuine OEM Roll·Rite replacement part
• Passenger -side pivot assembly for 6-spring underbody tarp systems
• Complete pivot box with springs and mounting components
• Supports smooth tarp arm movement and reliable tarp operation
• Heavy-duty construction for demanding dump truck applications
