The Roll Rite 109894 Relay Kit is a genuine OEM Roll-Rite electrical control kit designed as a direct replacement for the popular Roll-Rite 10695 relay kit used on electric tarp systems. This complete 12-volt relay assembly restores reliable power switching and circuit protection for tarp motor operation on trucks and trailers

Built around a heavy-duty Trombetta 12V mechanical reversing relay and protected by a 35 Amp manual reset circuit breaker, this kit provides dependable switching performance while protecting the electrical system from overloads and short circuits. Designed for demanding truck and trailer environments, it withstands vibration, moisture, and daily use in construction, agriculture, grain, refuse, and hauling applications.

Replaces OEM Part Number

• Roll Rite 10695

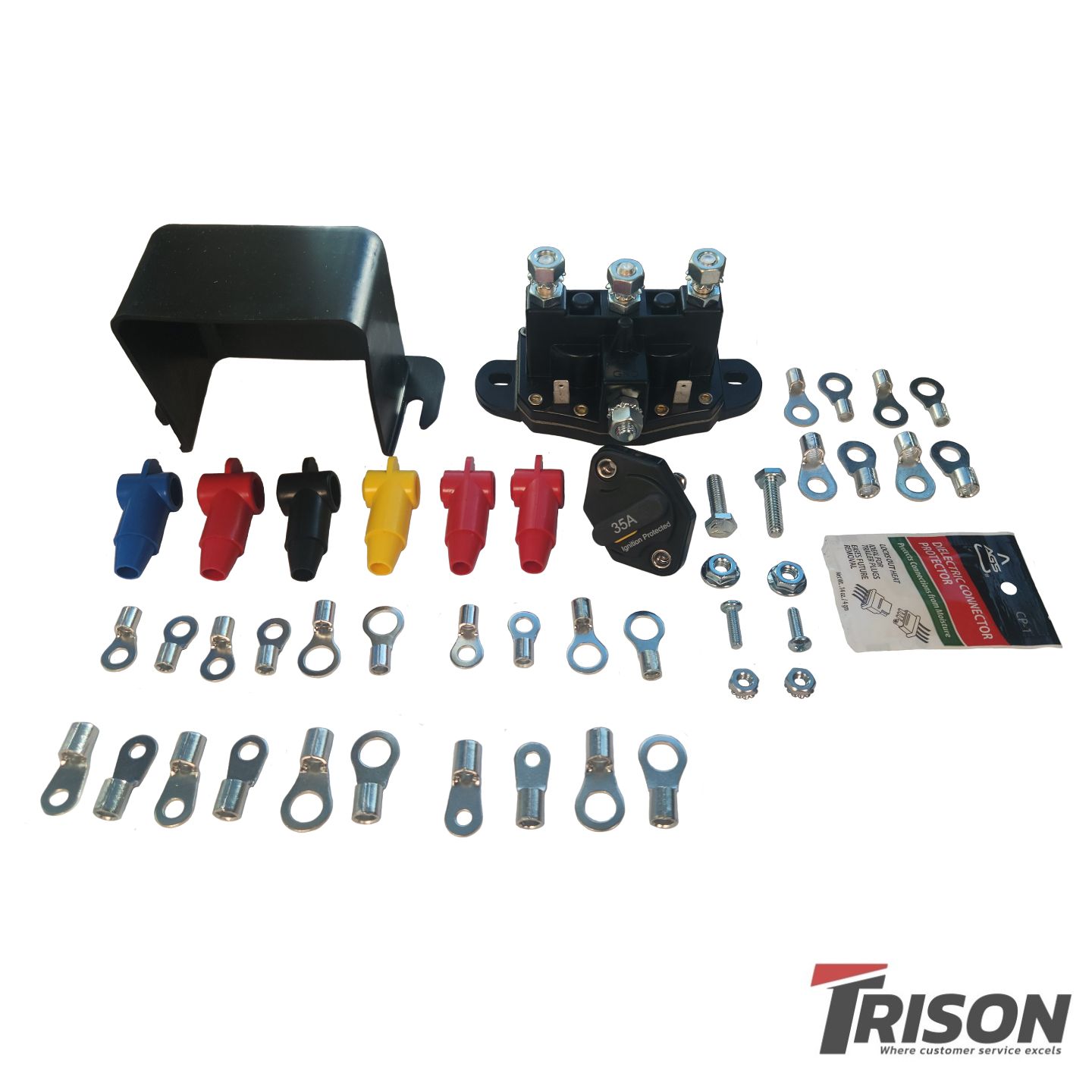

Kit Includes

• 10680 – Cover, Motor Reversing Contactor (1)
• 10670 – Motor Reversing Relay, 12V Contactor (1)
• 105432 – Bracket Kit, 35 Amp w/ Terminals & Boots (1)
• 105551 – Terminal Kit, Mechanical Relay w/ Boots (1)
• 109896 – Terminal, 6 GA x 5/16″ Ring (4)
• 109897 – Terminal, 8 GA x 5/16″ Ring (4)
• 18700 – 1/4″ x 1″ Grade 5 Hex Head Bolts (2)
• 18620 – 1/4″ Wiz Nuts (2)
• 90575A225 – 5/16″-24 Kep Nut (4)
• 16000 – Packet, Dielectric Grease (1)
• 109895 – Switch Wiring Instructions

Product Overview

• Genuine OEM Roll-Rite 109894 relay kit
• Direct replacement for Roll-Rite 10695
• Heavy-duty 12V Trombetta mechanical relay
• 35 Amp manual reset circuit breaker for overload protection
• Complete kit with terminals, boots, mounting hardware, and instructions
• Designed specifically for Roll-Rite electric tarp systems

The Roll Rite 109894 Relay Kit provides a reliable OEM solution for restoring safe and consistent electrical control to Roll-Rite tarp systems originally equipped with the 10695 relay kit.
