Description

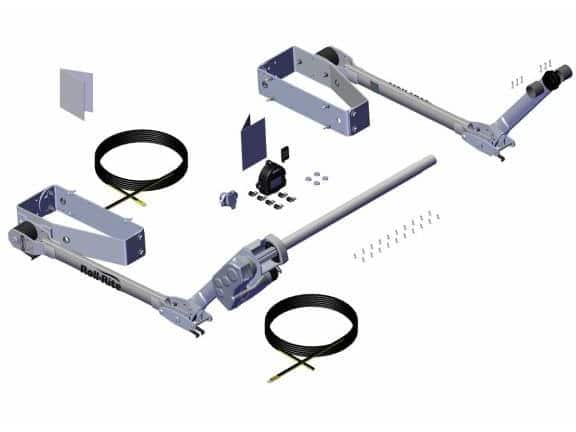

Roll Rite 38206 Roll-Rite 550GTX, Dual Arm, External Pivot, RF Wireless Controller- 12V includes:

• 37590 Bushing. Axle Stabilizer for 3694 Conversion Adapt – STS
• 48890 Pivot Tube. Long upper pvt arm for TT SS(16″)
• 47960 Bracket. 3 Sp Knuckle pin w/ stop plate for SS pvt. mtr end
• 47230 Spring. Spiral Torsion Spring 1 1/4″
• 18560 Pin. 1/2 x 4 1/8 Special Clevis
• 18295 Bolt. 1/2″ x 1 1/2″ Button Head Bolt
• 18412 Washer. 1/2″ Flat Zinc
• 18631 Nut. 1/2″ Nylock Nut
• 48440 Pivot Tube. Base Arm for External Pivot Retro fit Kit on Grain Trailers
• 45350 Pivot Pin. 5-Spring
• 100740 Wire. 8 Ga. Dual Conductor – (per ft) – BLACK/YELLOW

Download PDF:

• Parts List for 38206
