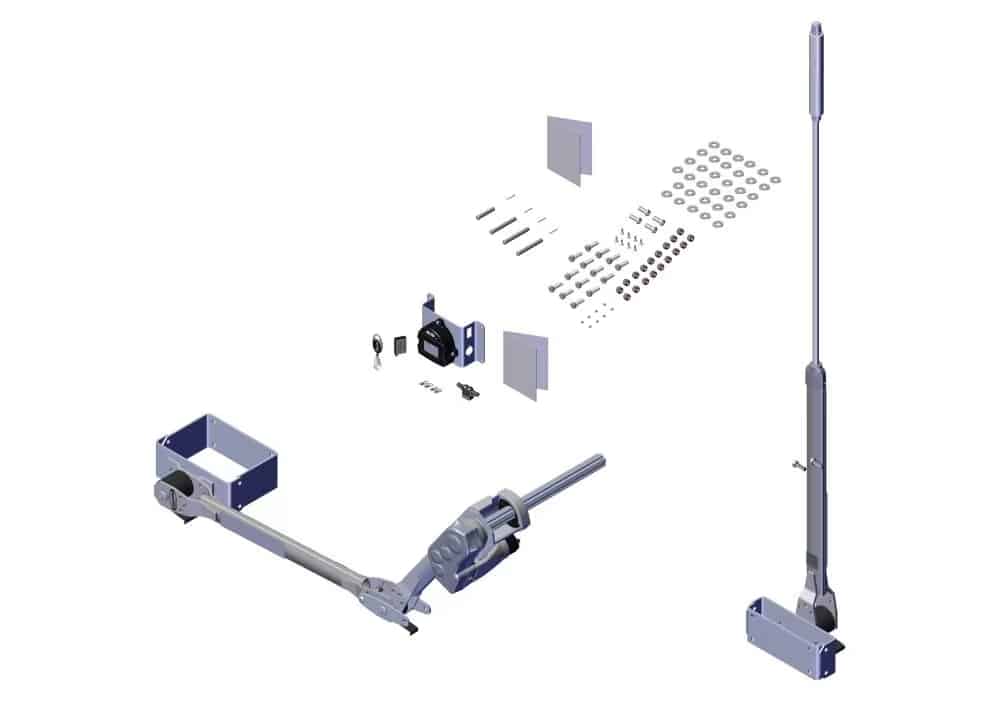

Roll Rite 38208  Rite-Lock Power Arm Kit, Pass Stowing w/ext Pivot & Multi Flex Arm for 2″ Axle – no 6ga wire-12V TS Includes:

• 10200 TarpStretcher Motor 12V. 5 Year Warranty :S/N: x 1
• 46812 Pivot. Assembled Front Arm W 29.25″ Lower & 16.1875″ Upper For 38208 x 1
• 47278 Bracket. Outer Mounting Bracket for Multiflex x 2
• 47279 Bracket. Inner Mounting Bracket for Ext Pivot on End dump x 1
• 101545 Electric Kit. One Touch w/ RF Control & Poly Enclosure 12V x 1
• 101203 Instructions. Side to Side Conversion Kit x 1
• 18295 Bolt. 1/2″ x 1 1/2″ Button Head Bolt x 4
• 18244 Screw. 8×3/8 PH Pan HD T-AB T/S Zinc x 8
• 18296 Bolt. 1/2″ x 1 1/2″ Hex Head Bolt x 16
• 18140 Screw. 1/4″ x 3/4″ Pan Phillips self Drilling x 8
• 18631 Nut. 1/2″ Nylock Nut x 16
• 18412 Washer. 1/2″ Flat Zinc x 36
• 36940 Axle. Adapter 2″ Axle. 21″ Extrusion Tube 2″ OD – 1″ID x 1
• 46505 Pivot Assembly. Rear Arm for Pass Stowing System w/2″ Axle x 1
• 47277 Bracket. Inner Mounting Bracket for Multiflex x 1

Download PDF:

• 38208 Part List.pdf
