Description

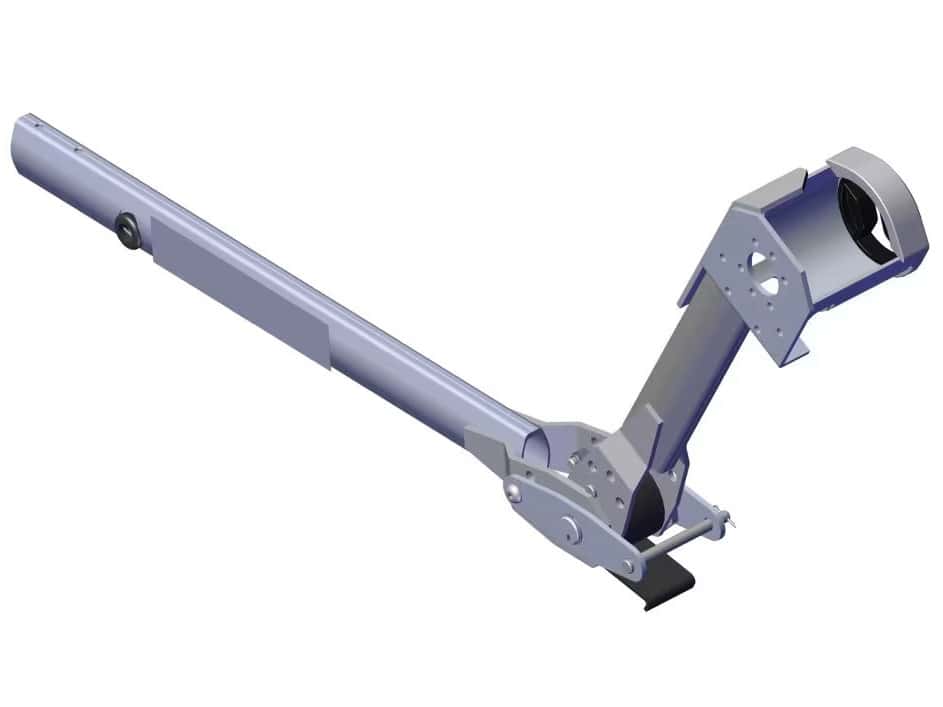

Roll Rite 46802 Pivot, Assembled Knuckle Arm for 37200, Motor End:

• 102199 Pivot Tube. Base W/Side Plates and Set Screws for 4 spring SS Knuckle 32.6″
• 18295 Bolt. 1/2″ x 1 1/2″ Button Head Bolt
• 18412 Washer. 1/2″ Flat Zinc
• 18631 Nut. 1/2″ Nylock Nut
• 47970 Bracket. 4 Sp Knuckle pin w/ stop plate for SS pvt. mtr end
• 18540 Pin. 1/2″ x 5-1/4″ Clevis
• 47230 Spring. Spiral Torsion Spring 1 1/4″
• 18520 Pin. 1/2″ x 3-1/2″ Clevis
• 102197 Pivot Tube. Front Upper for 4 Spr Knuckle W/ bushing 13.06″ Tube
• 37580 Bushing. Axle Stabilizer for 4″ Axle

Download PDF:

• Parts List for 46802
