Description

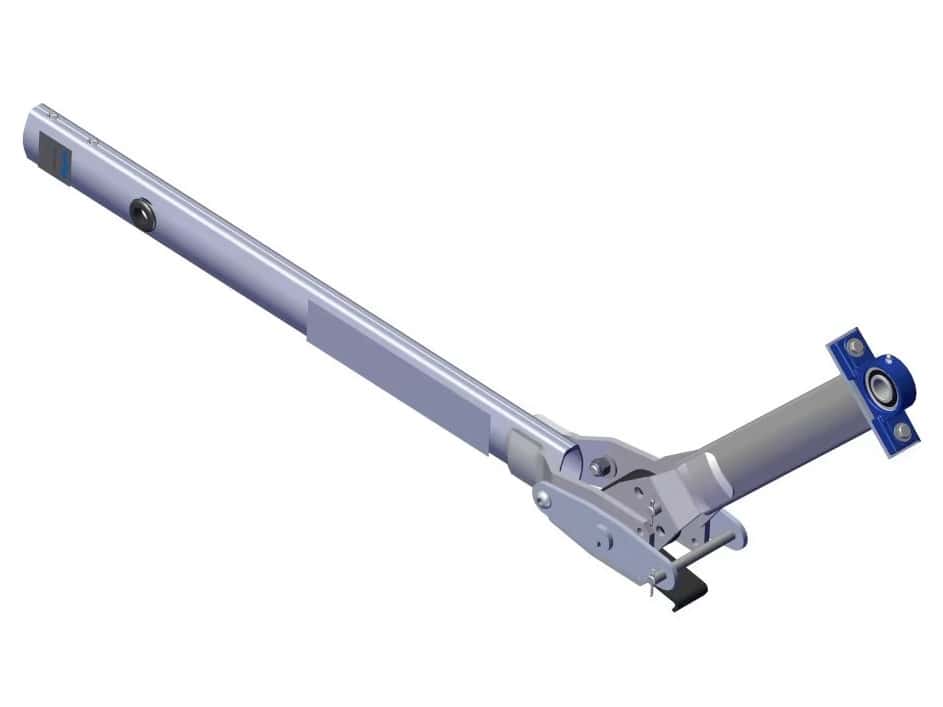

Roll Rite 46803 Pivot, Assembled Knuckle Arm for 37200, Non-Motor End:

• 102199 Pivot Tube. Base W/Side Plates and Set Screws for 4 spring SS Knuckle 32.6″
• 18295 Bolt. 1/2″ x 1 1/2″ Button Head Bolt
• 18412 Washer. 1/2″ Flat Zinc
• 18631 Nut. 1/2″ Nylock Nut
• 47970 Bracket. 4 Sp Knuckle pin w/ stop plate for SS pvt. mtr end
• 18540 Pin. 1/2″ x 5-1/4″ Clevis
• 47230 Spring. Spiral Torsion Spring 1 1/4″
• 47890 Pivot. Rear Upper Tube. w/bearing. 4 Spring Side-to-Side Knuckle Pivot

Download PDF:

• Parts List for 46803
