Description

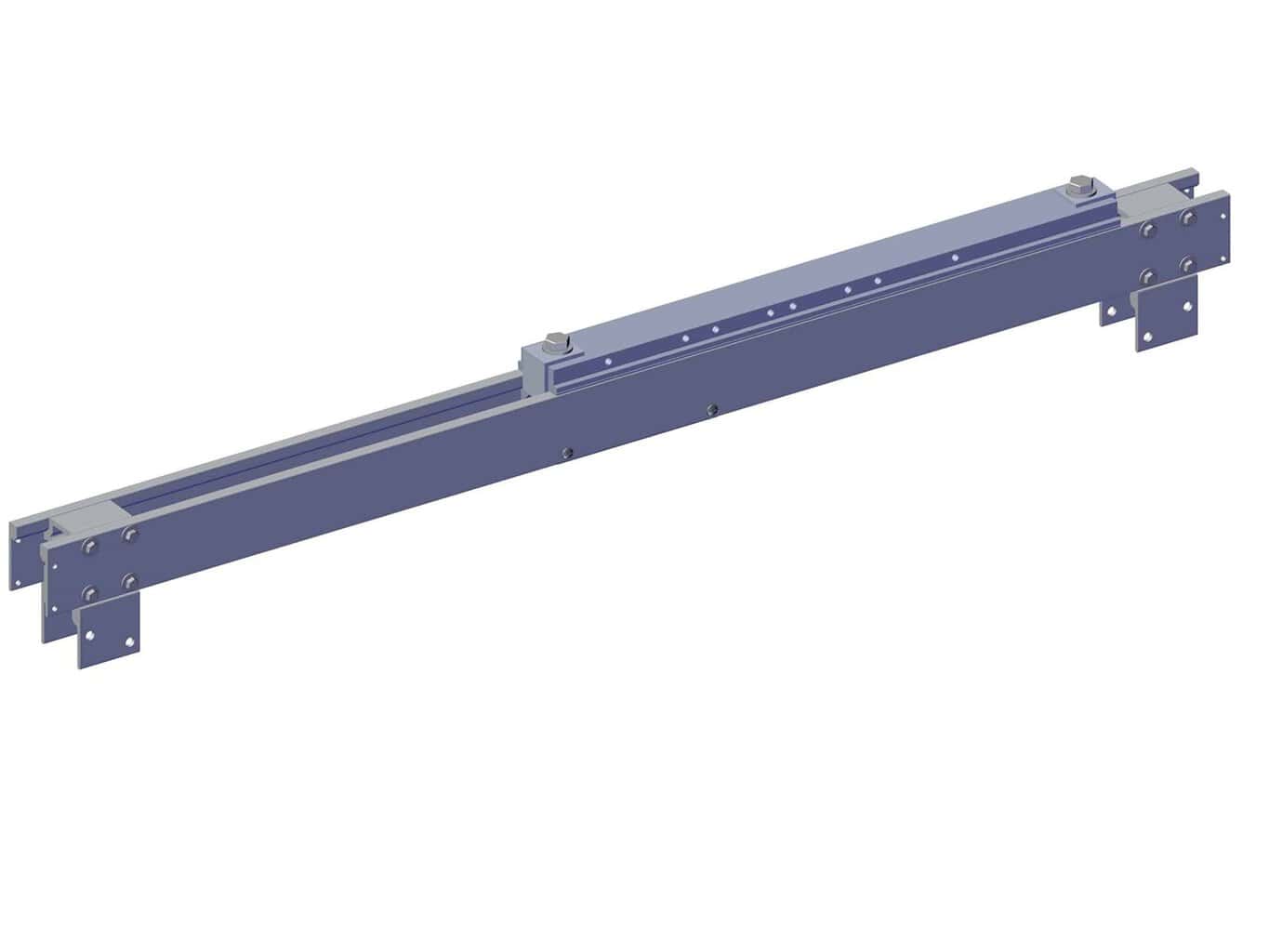

Roll Rite 47735 Sliding Pivot Assembly

Narrow Assembly Mount with Cylinder includes:

• 47784 Cylinder. Hydraulic only for 2′ Sliding Pivot (each)
• 18645 Nut. 1- 1/8″ -12 Nylock Nut
• 18420 Washer. 1-1/8″ SAE Flat Zinc
• 100389 Pivot Assembly. Sliding Pivot Narrow Assembly Mount
• 46734 Bracket. Guide Retainer for Narrow Sliding Pivot Sliding Rail
• 18417 Washer. 5/8″ Flat SAE. Zinc
• 18712 Bolt. 5/8″ x 2 1/4 Hex Head

Download PDF:

Parts List for 47735
