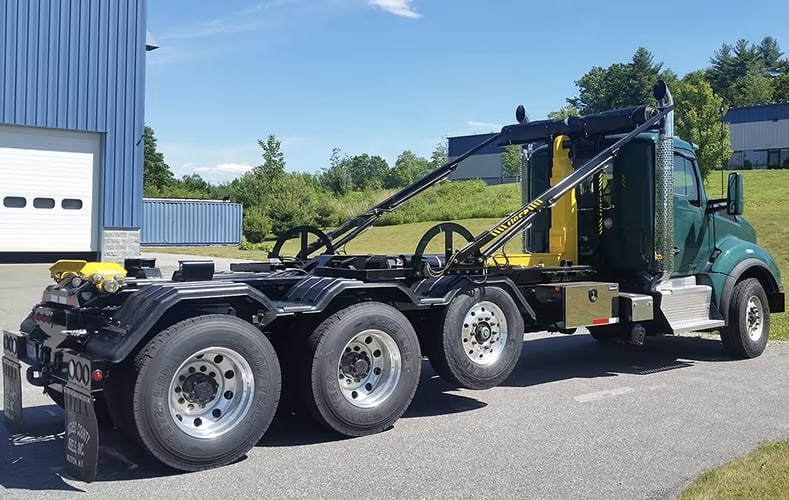

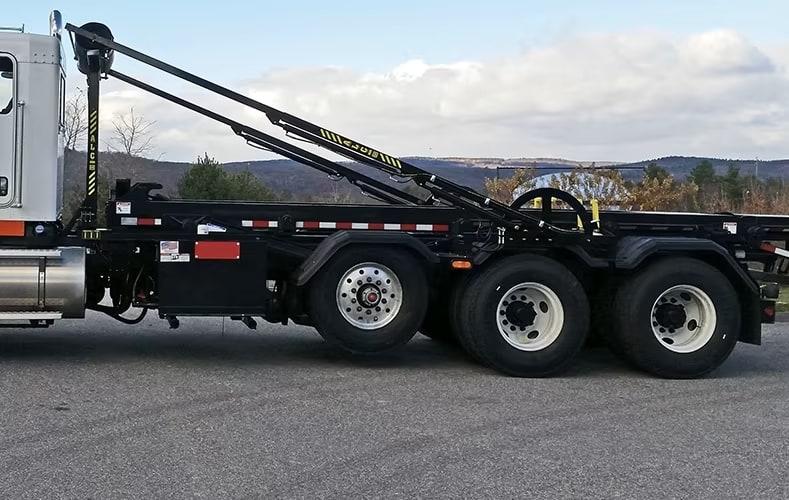

Roll-Rite ALC300 Series are reliable, durable tarp solution for roll off and hooklift operators preferring steel systems that operate using the truck hydraulics.

Roll-Rite ALC300 is Designed For Multi Axle Roll Off and Hooklifts with Multiple Height and Length Containers Including 20, 30, 40 and 50 yd Cans.

Fully Adjustable Hydraulic Telescoping Gantry with Hydraulic Sliding Arms (ROHGHS), 32 ft. HD Tarp is standard and installed.

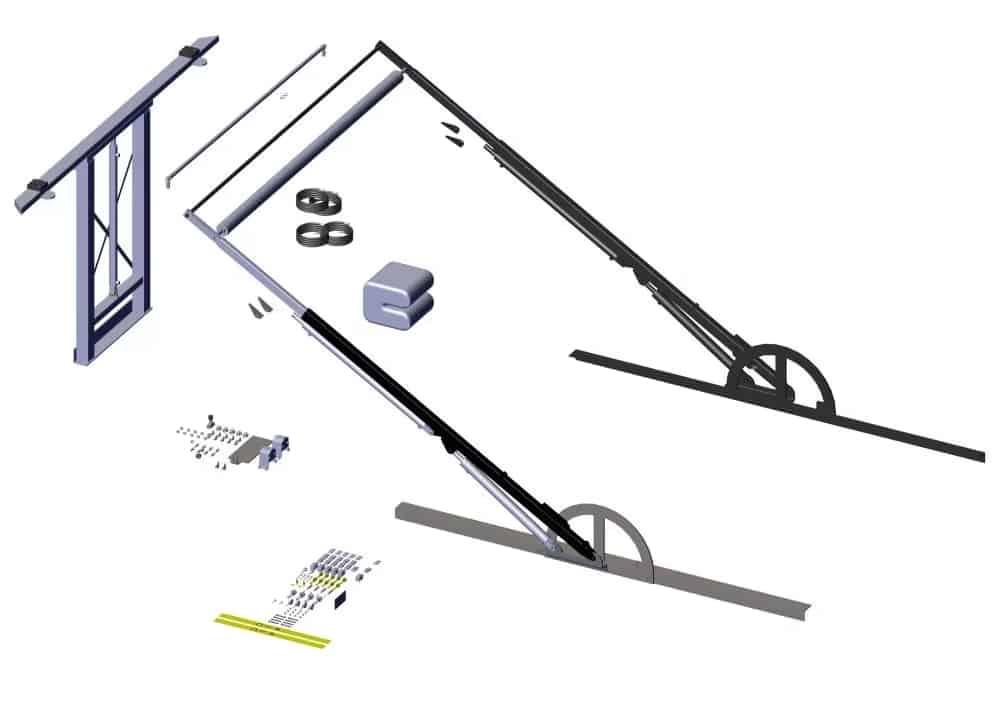

Features:

• 79004 (ROHG). Hydraulic Gantry x 1
• 79504 HDBA83.Hold Down Bar Assembly – 83″ x 1
• 79503 ROTTA.Torsion Tube Assembly for Hooklift and Roll off x 1
• 79815 Super Tough Extreme Mesh Tarp. Multi-Axle 96″ x 32′ w/ Flaps – ALC Series x 1
• 79390 Bracket. Mount for PM2 (PM2B2) x 1
• 79818 Flow Divider PM2 with Hardware x 2
• 79540 Rolloff Pivot Mount Assembly. ALC (Left) x 1
• 79541 Rolloff Pivot Mount Assembly (Right) x 1

PDF Downloads:

• 79300 Part_List.pdf
• ALC300 Series Installation Instructions
• ALC300 Series Brochure PDF
