Description

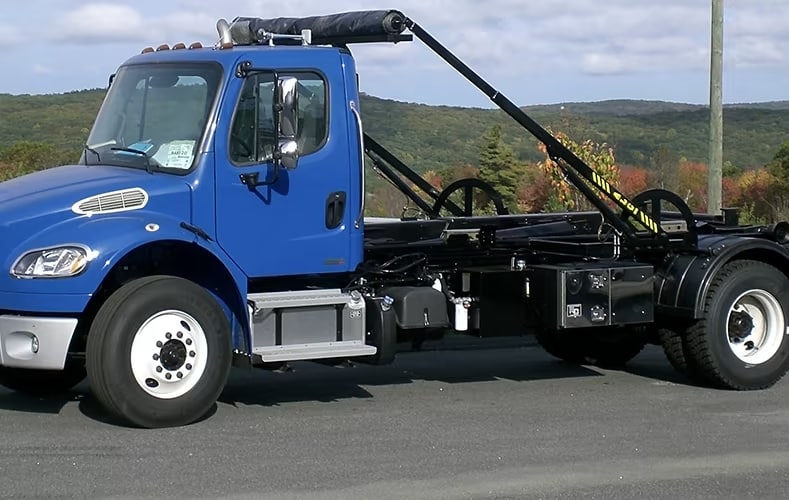

Roll-Rite ALC300 Series are reliable, durable tarp solution for roll off and hooklift operators preferring steel systems that operate using the truck hydraulics.

Roll-Rite ALC310 is Designed For Single Axle Hooklifts with Multiple Height and Length Containers Including 20, 30, and 40 Cubic Yard Sizes.

Fully Adjustable Hydraulic Telescoping Gantry with Hydraulic Sliding Arms (HLHGSA), 22 ft. HD Tarp with Hook Cutout is standard and installed.

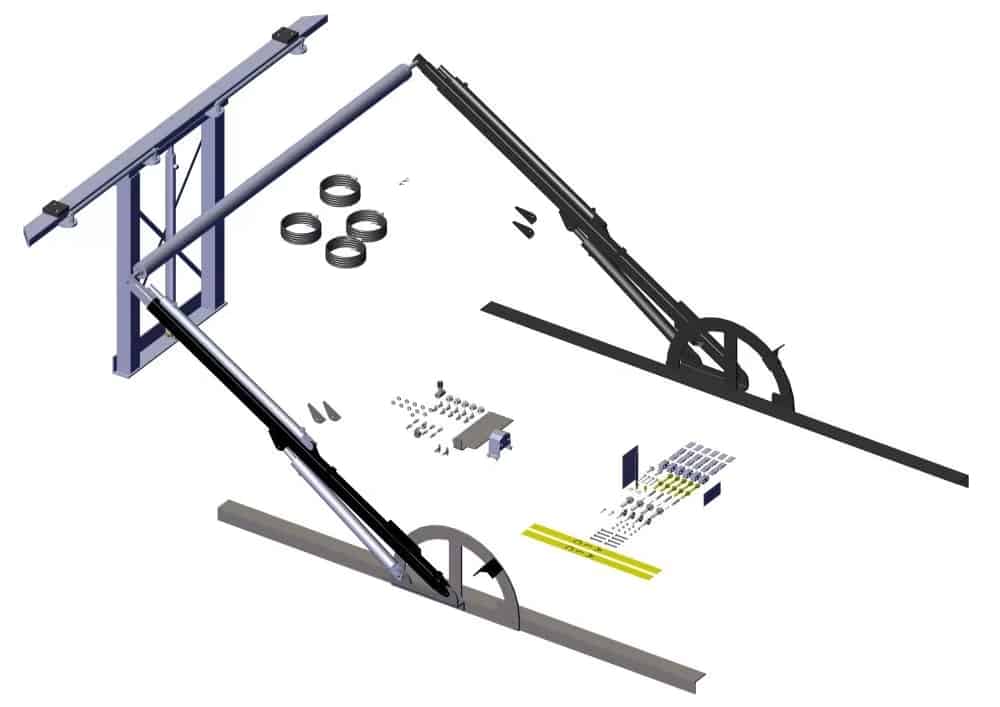

Features:

• 79005 (HLHG). Hydraulic Gantry x 1
• 79503 ROTTA.Torsion Tube Assembly for Hooklift and Roll off x 1
• 79826 Hooklift Pivot Mount Assembly. ALC (Left) x 1
• 79827 Hooklift Pivot Mount Assembly (Right) x 1
• 79818 Flow Divider PM2 with Hardware 2
• 105067 Instructions. ALC DC Roll Off Installation Guide #79300 x 1

PDF Downloads:

• 79310 Part_List.pdf
• ALC300 Series Installation Instructions
• ALC300 Series Brochure PDF
