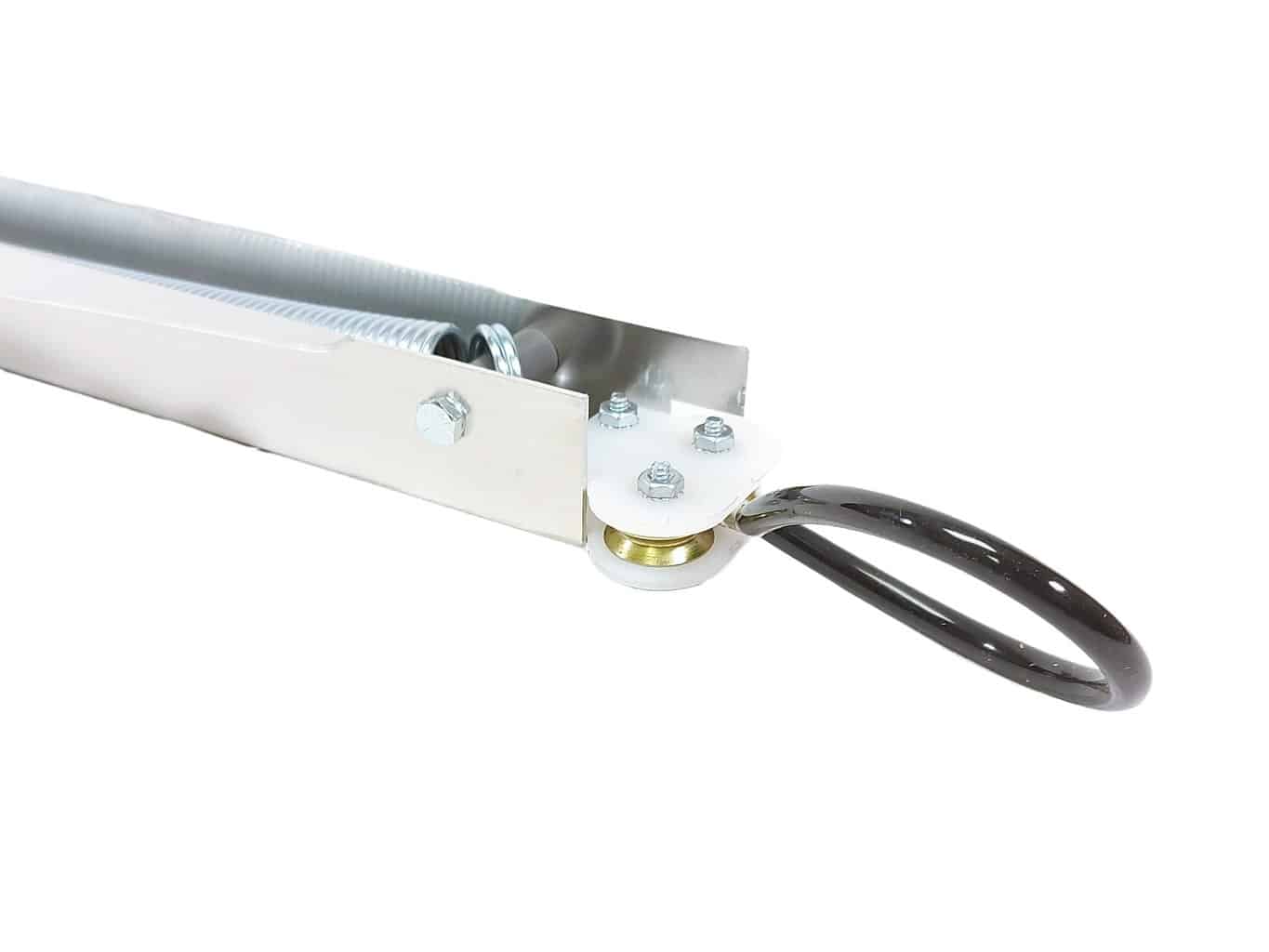

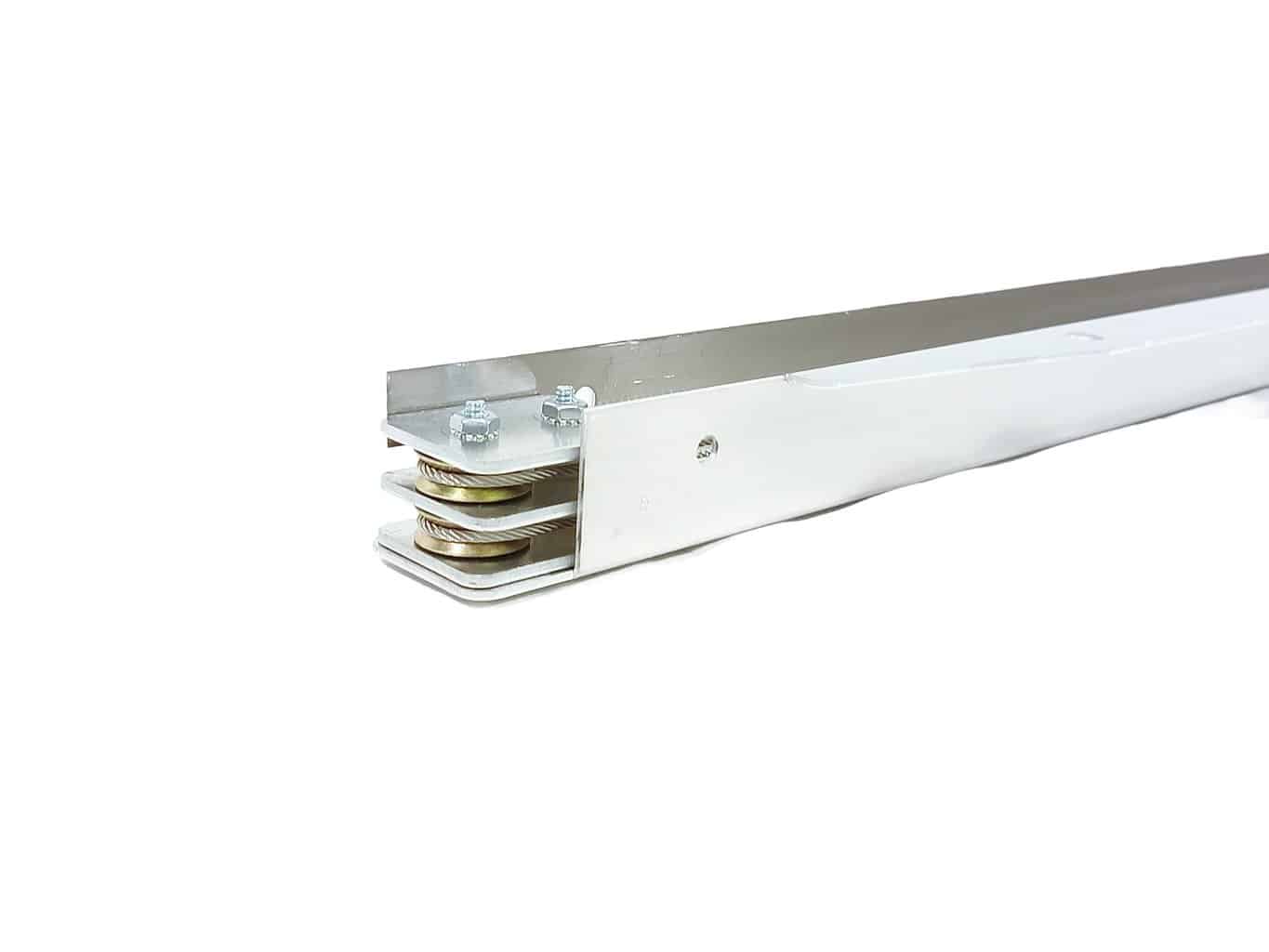

Uses a non-stretch cable and steel tension spring. Installs on rear of trailer. (For reverse roll systems, install on front of trailer.)

INCLUDED IN KIT – FOR 2″ ROLL TUBES:

• 1 – 1702672 Hex Head Cap Screw – 1/4″ x 2-1/4″ (Qty. 1)
• 2 – 1702654 Machine Screw – 1″ (Qty. 4)
• 3 – 1701543 Nylon Lock Hex Nut – 1/4″ (Qty. 1)
• 4 – 1700400 Self-Tapping Screw – 3/8″ x 1″ (Qty. 3)
• 5 – 1114728 Universal Cable Return Housing (Qty.1)
• 6 – 1115014 Spacer Washer – 1-5/8″ (Qty. 1)
• 7 – 1700434 Lock Washer – 3/8″ (Qty. 3)
• 8 – 1700407 Hex Nut – 3/8″ (Qty. 3)
• 10 – 1115206 Velcro Hook – 1″ x 4″ (Qty.1)
• 11 – 1702657 Extension Spring (Qty. 1)
• 12 – 1114582 Cable w/Return Strap (Qty.1)
• 13 – 1114691 Front Retainer Plate (Qty. 2)
• 14 – 1703006 Pulley – 1/16″ Cable Groove (Qty. 5)
• 15 – 1111056 Plastic Spacer – 3/8″ Thick (Qty. 4)
• 16 – 1702653 Machine Screw Nut (Qty. 7)
• 17 – 1112997 Rope Block Retainer Plate (Qty. 2)
• 18 – 1111054 Flat Washer (Qty. 1)
• 19 – 1702656 Machine Screw – 1-1/2″ (Qty. 2)
• 20 – 1702655 Machine Screw – 1-1/4″ (Qty. 1)
• 22 – 111808 – End Cap/Cable Retainer w/Screw (Qty. 1)
• 23 – 1110913 Rear Retainer Plate (Qty. 3)

NOT INCLUDED IN KIT:

9, 21, 24, 25, 26, 27, 28, 29, 30, 31, 32

NOTE: For reverse roll systems, the rear return should be used on the front of the trailer and the front return should be used on the rear of the trailer.

Need a replacement? Check out our compatible alternative with the same performance.

Rebuild your front return kit with the cable return replacement kit, which is designed to restore both front and rear cable return kits.
