Description

Description

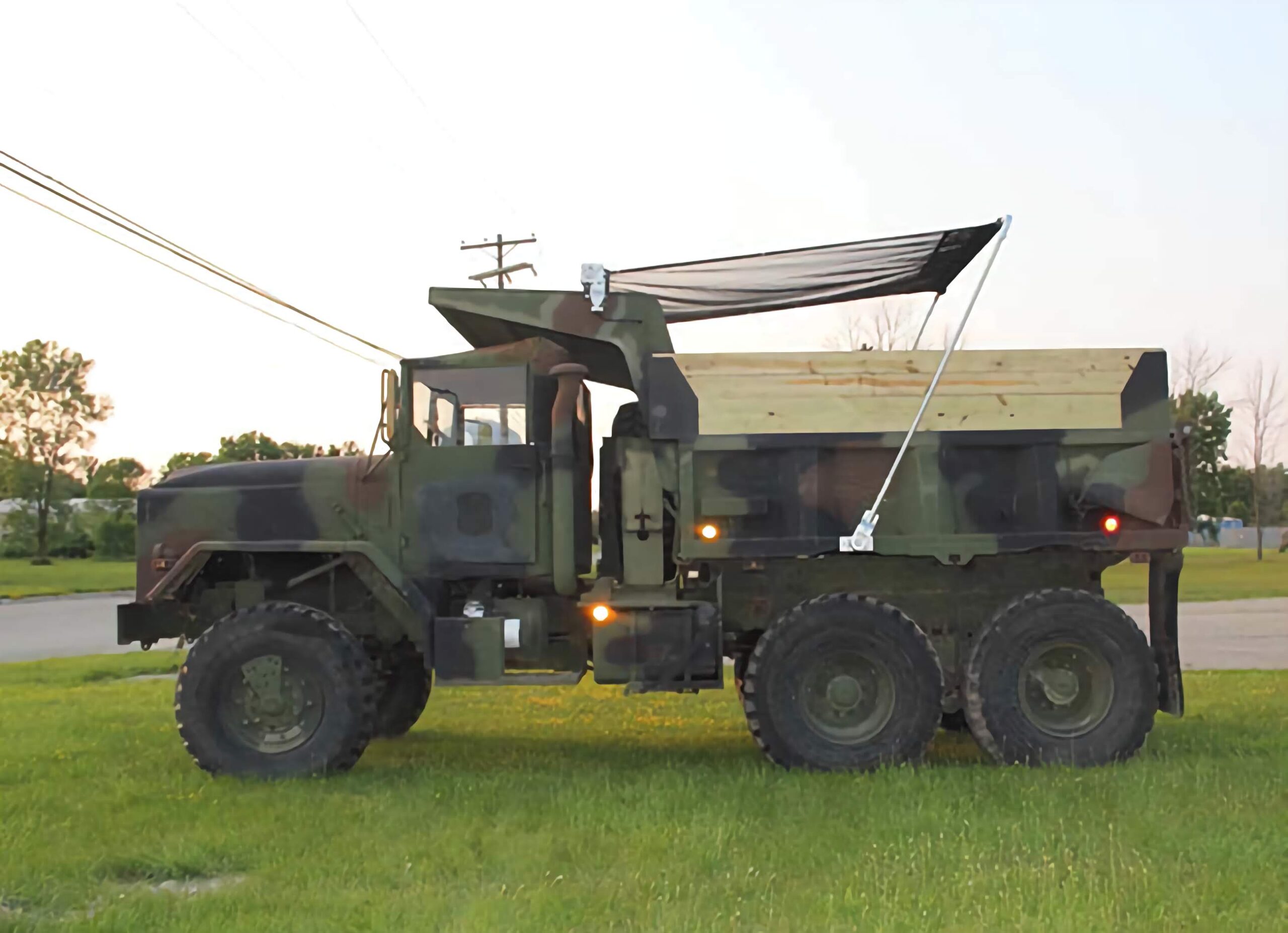

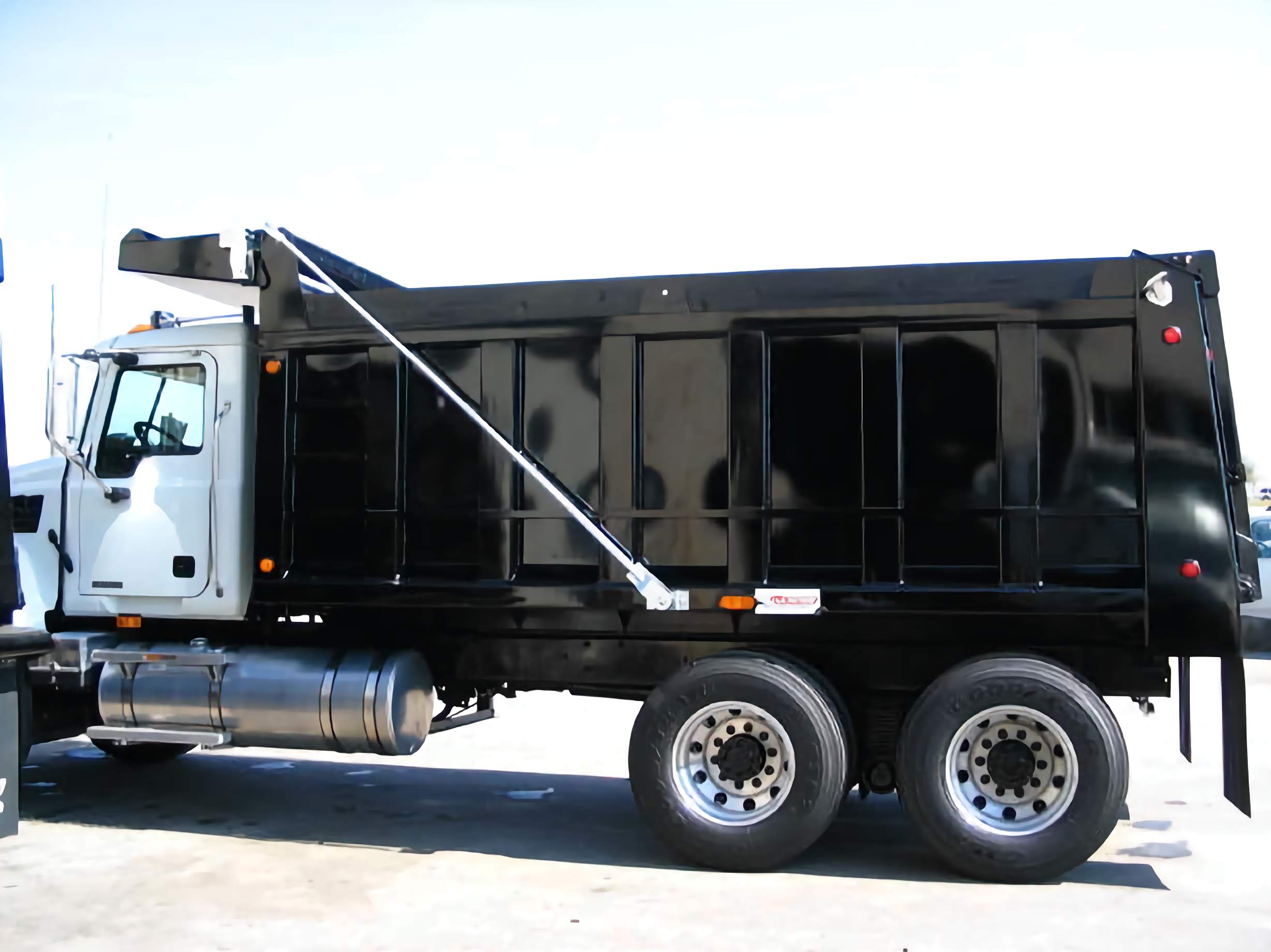

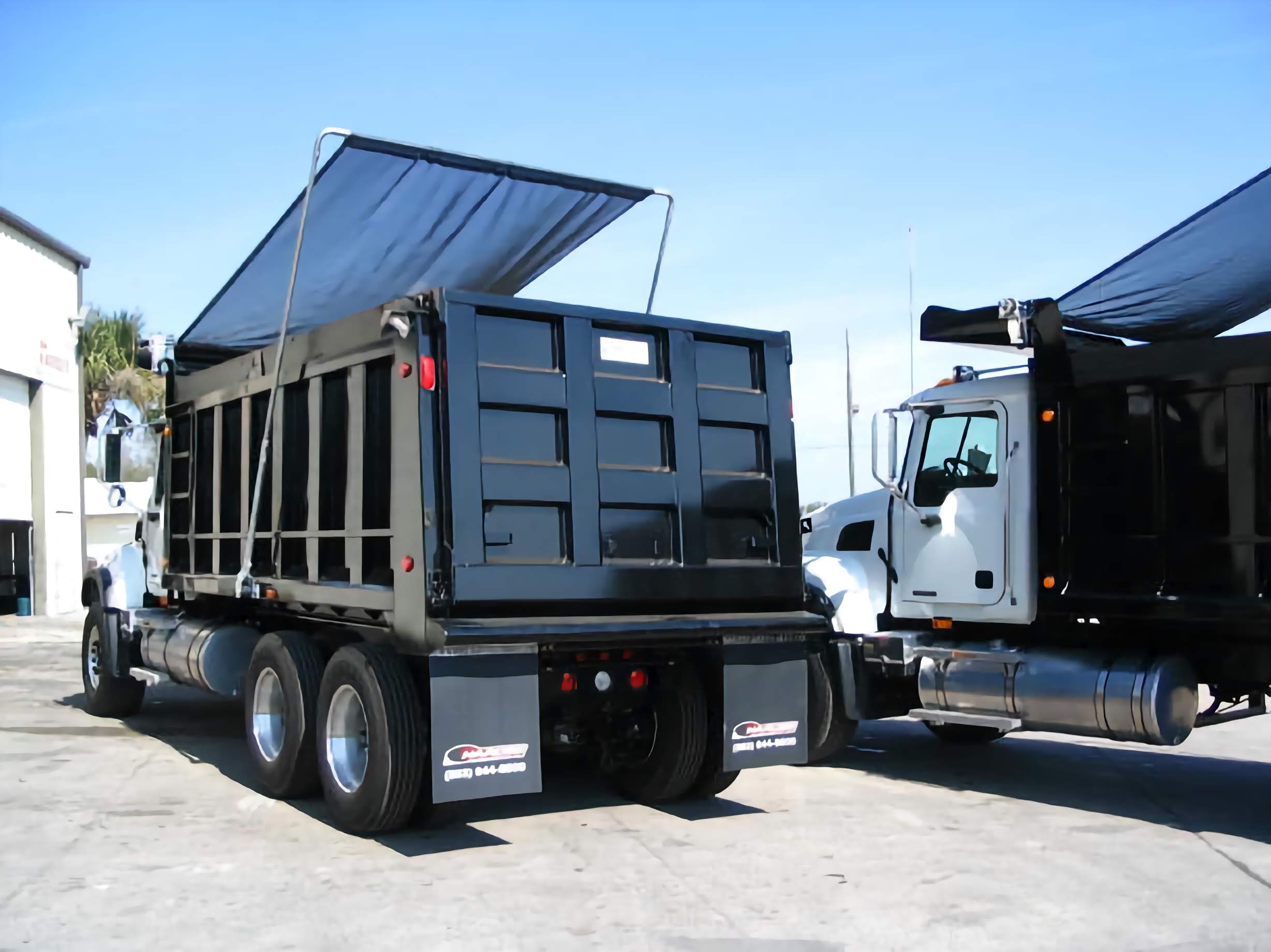

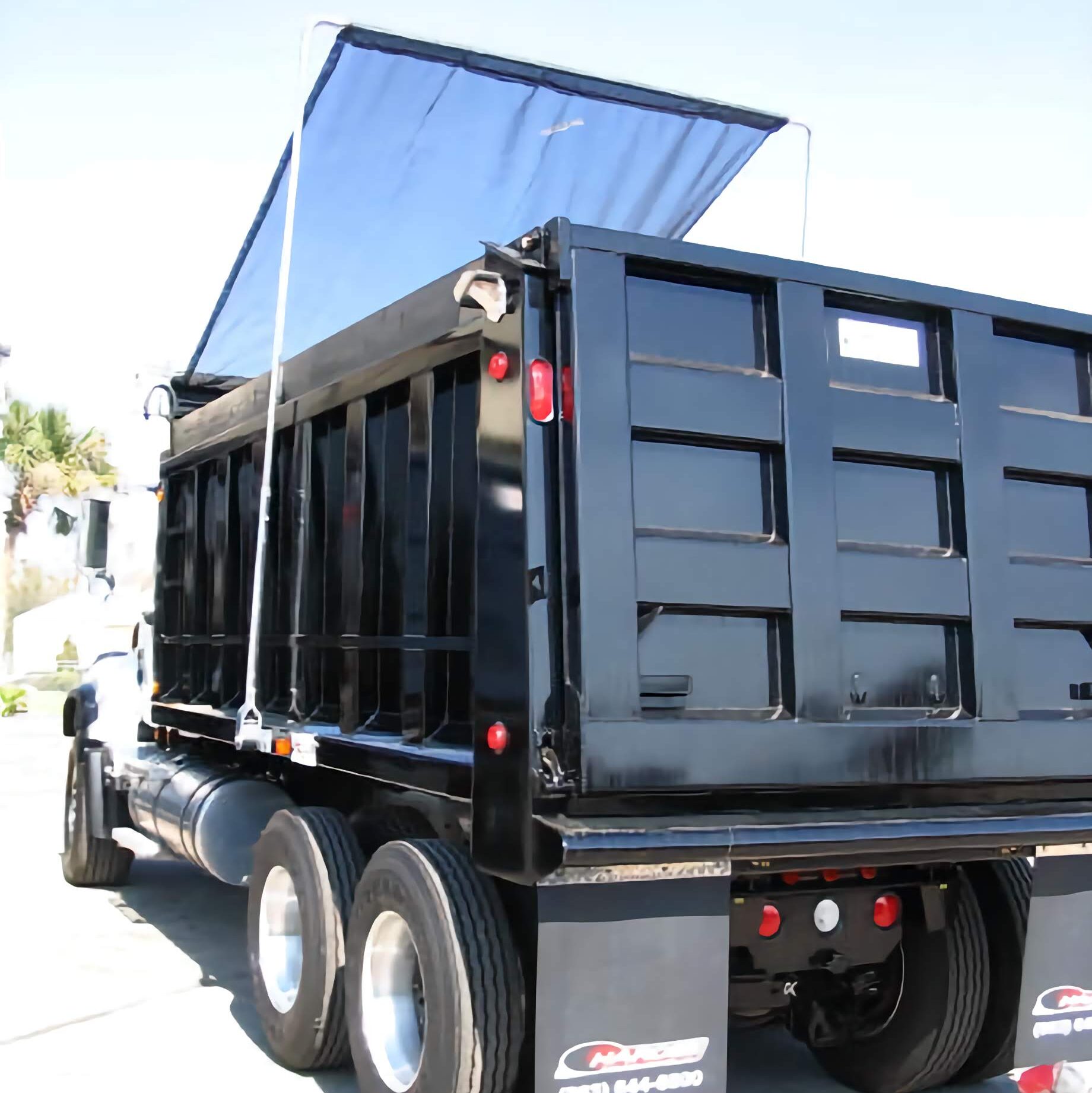

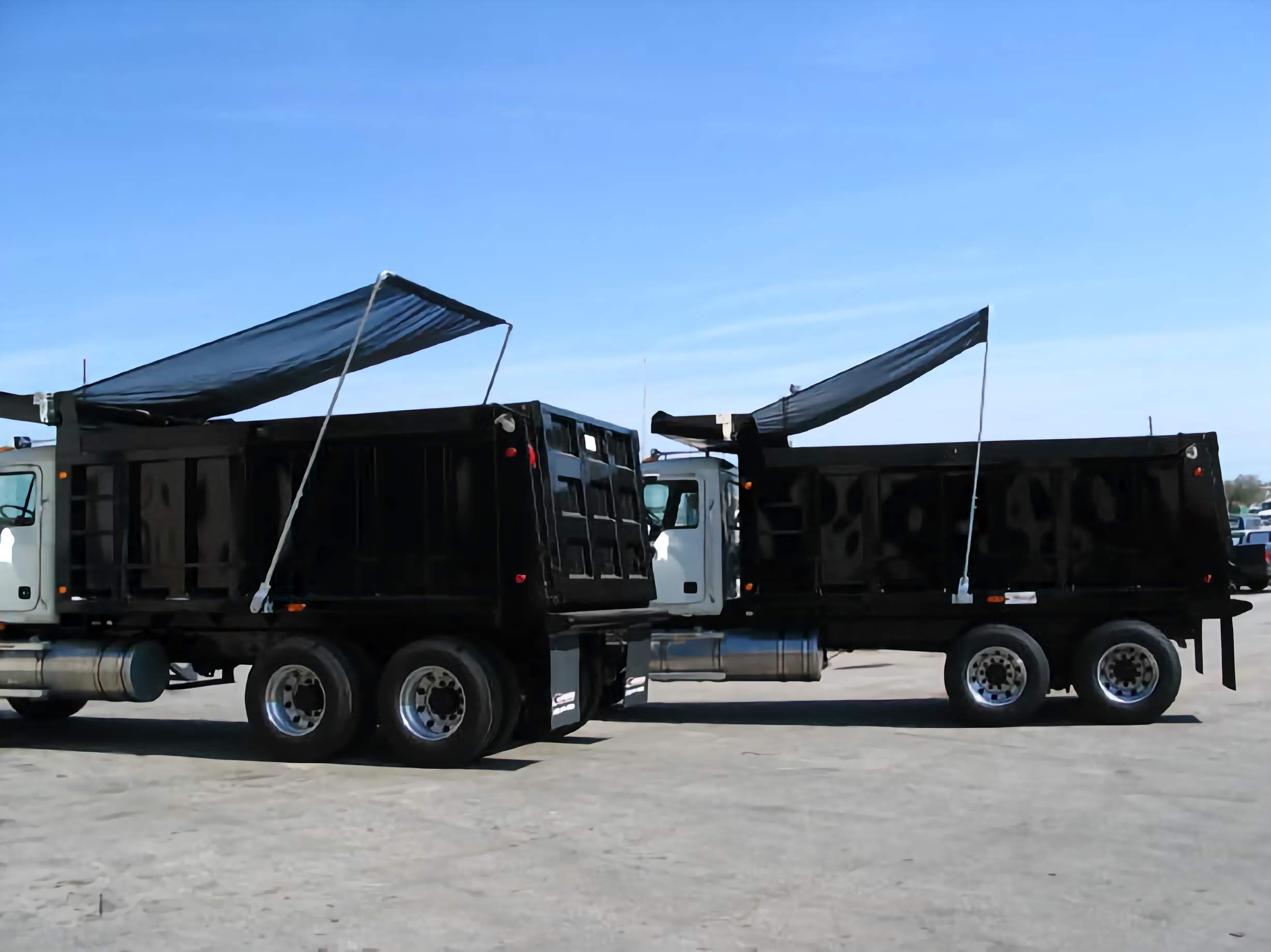

Get dependable protection and easy operation with the US Tarp Galvanized Steel Electric Tarp System—built for rugged use on dump bodies from up to 24′ (4-spring) or up to 26′ (5-spring). This front-to-back tarp solution features a heavy-duty galvanized arm assembly, a reliable 12V Bulletproof Slim Motor, and a complete installation hardware kit.

Key Features

• Galvanized Steel Arms – Durable, corrosion-resistant with powder-coated finish
• Telescoping Side Arms – Adjustable to fit various body widths
• Bolt-On or Weld-On Spring Mounts – Flexible installation options
• US Tarp Slim 12V Motor (50:1) – Chrome cover and 3-year warranty
• Rotary Switch Control – In-cab manual operation included
• 65′ of 6-Gauge Power Wire – Long reach for easy routing
• Optional 30° Bent Arms

Available Models & Included Parts

4-Spring Galvanized Steel System (US Tarp SKU: 11525) – For dump bodies up to 24′

Includes:

• (2) Lower Steel Arms – 36″
• (2) Upper Arms – 120″
• (8) Spiral Torsion Springs
• (2) 4-Spring Pivot Pins w/ Retaining Rings
• (2) Steel 90° Corners
• (1) Steel Cross Tube – 96″
• (2) Rubber Tarp Centering Flanges
• (2) Tarp Collar Clamps
• (2) Steel Stop Brackets w/ Rubber Bumpers
• US Tarp Slim 12V Motor (50:1 gear ratio, chrome cover)
• Rotary Switch Control
• 65 ft of 6-Gauge Power Wire
• Full Installation Hardware Kit

5-Spring Galvanized Steel System (US Tarp SKU: 11567) – For dump bodies up to 26′

Includes:

• (2) Lower Steel Arms – 48″
• (2) Upper Arms – 120″
• (10) Spiral Torsion Springs
• (2) 5-Spring Pivot Pins w/ Retaining Rings
• (2) Steel 90° Corners
• (1) Steel Cross Tube – 96″
• (2) Rubber Tarp Centering Flanges
• (2) Tarp Collar Clamps
• (2) Steel Stop Brackets w/ Rubber Bumpers
• US Tarp Slim 12V Motor (50:1 gear ratio, chrome cover)
• Rotary Switch Control
• 65 ft of 6-Gauge Power Wire
• Full Installation Hardware Kit

Optional Upgrades & Accessories

Enhance your system with premium US Tarp accessories

• Stainless Steel Hardware Kit
• Tension Bow – Galvanized (US Tarp #7671S)
• Tension Hoop – (US Tarp #12372)
• Factory-Bent 30° Arms – Optional upgrade
• 30° & 45° Elbow Kits – (US Tarp #13845 & #13546)
• Rubber Centering Flanges
• 60:1 Heavy-Duty Motor Upgrade
• Powerhouse Heavy-Duty Motor Upgrade
• EZ Switch Rocker Upgrade
• Wireless Remote Control Kit
• Ground-Level Manual Crank
• Heavy-Duty Tarp Axle Upgrade
• Steel Stop Brackets with HD Bumpers

📞 Need Help Choosing the Right System?

Not sure whether to choose the 4-spring or 5-spring version? Looking to bundle with accessories like bent arms, wireless controls, or tension bows? Contact our team for expert help with configuration, compatibility, and installation support.
