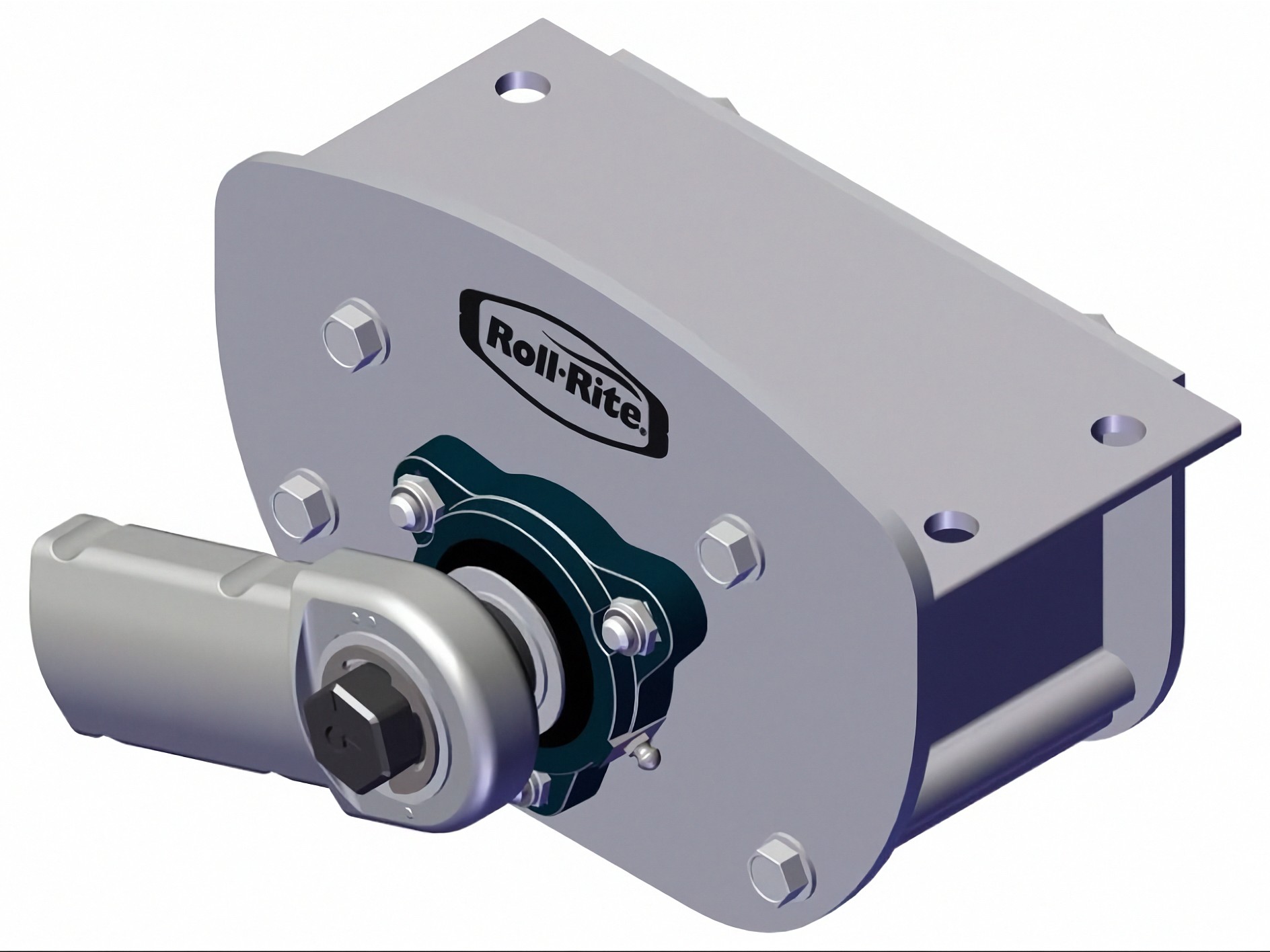

Roll Rite 103294 Pivot, UB Assembly – 5-Spring Passenger Side is a genuine OEM Roll·Rite pivot assembly designed for 5-spring underbody mount tarp systems. This Passenger-side pivot assembly supports the tarp arm mechanism, allowing smooth pivot movement and reliable operation of the tarp system.

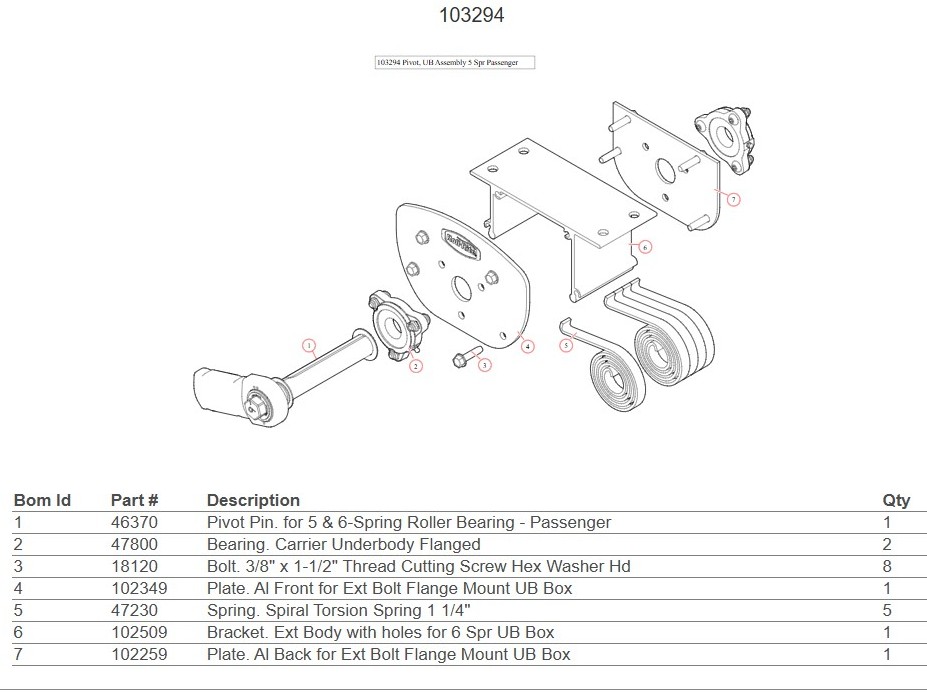

Includes:

• (1) 46370 – Pivot Pin for 5 & 6 Spring Roller Bearing – Passenger Side
• (2) 47800 – Carrier Underbody Flanged Bearings
• (8) 18120 – 3/8″ × 1-1/2″ Thread Cutting Hex Washer Head Bolts
• (1) 102349 – Aluminum Front Plate for Ext Bolt Flange Mount UB Box
• (5) 47230 – 1-1/4″ Spiral Torsion Springs
• (1) 102509 – External Body Bracket for 6 Spring UB Box
• (1) 102259 – Aluminum Back Plate for Ext Bolt Flange Mount UB Box

Product Overview

• Genuine OEM Roll·Rite replacement part
• Passenger-side pivot assembly for 5-spring underbody (UB) tarp systems
• Supports proper arm pivot movement and tarp operation
• Includes internal components such as pivot pin, torsion springs, bearings, and mounting hardware
• Heavy-duty construction for dependable performance in dump truck tarp systems
