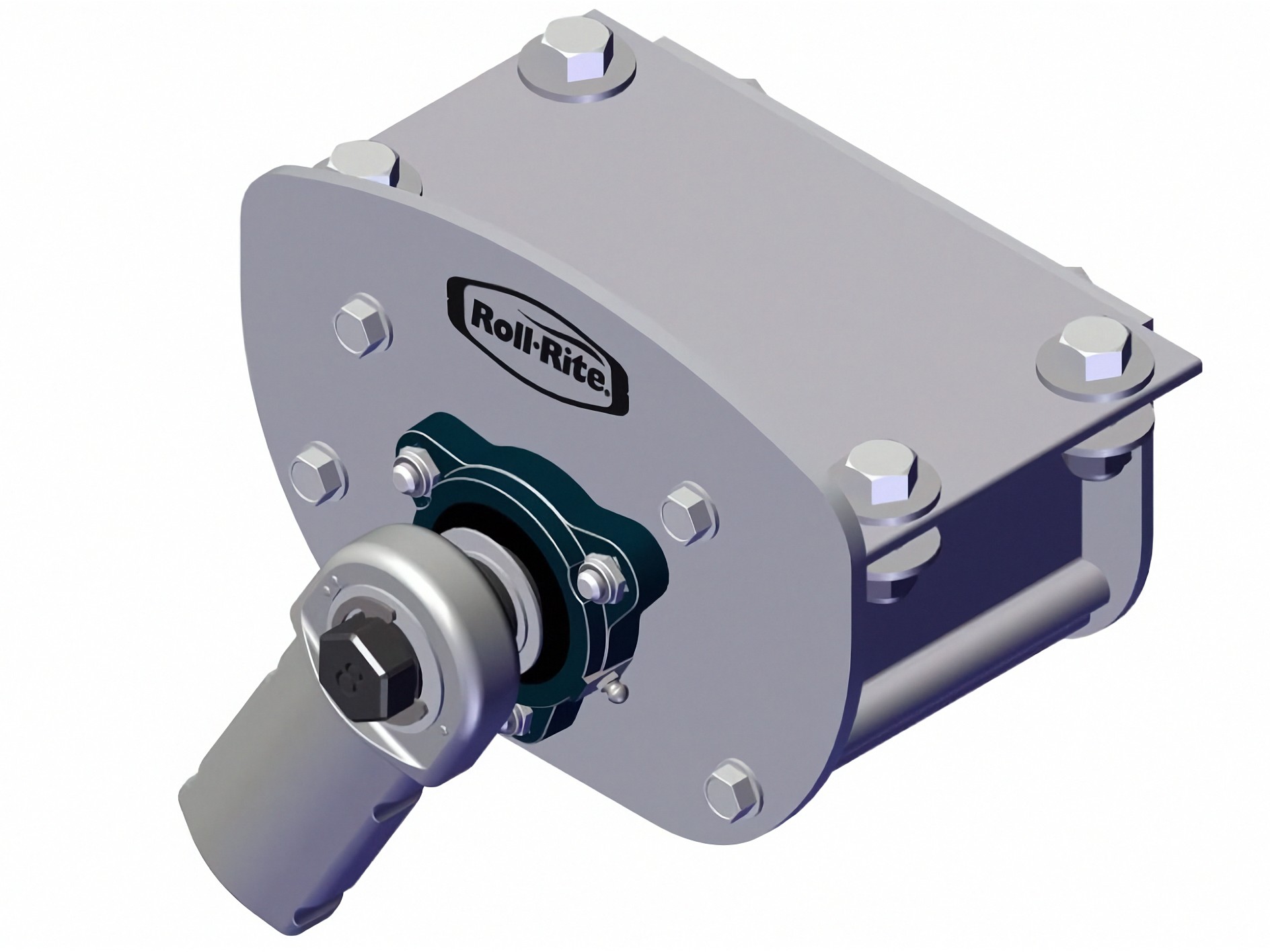

Roll·Rite 103298 Pivot, UB Assembly – 8-Spring Passenger Side (Without Tube) is a genuine OEM Roll·Rite pivot assembly designed for 8-spring underbody mount tarp systems. This driver-side pivot assembly supports the tarp arm mechanism and ensures smooth pivot movement for reliable tarp operation on dump truck tarp systems.

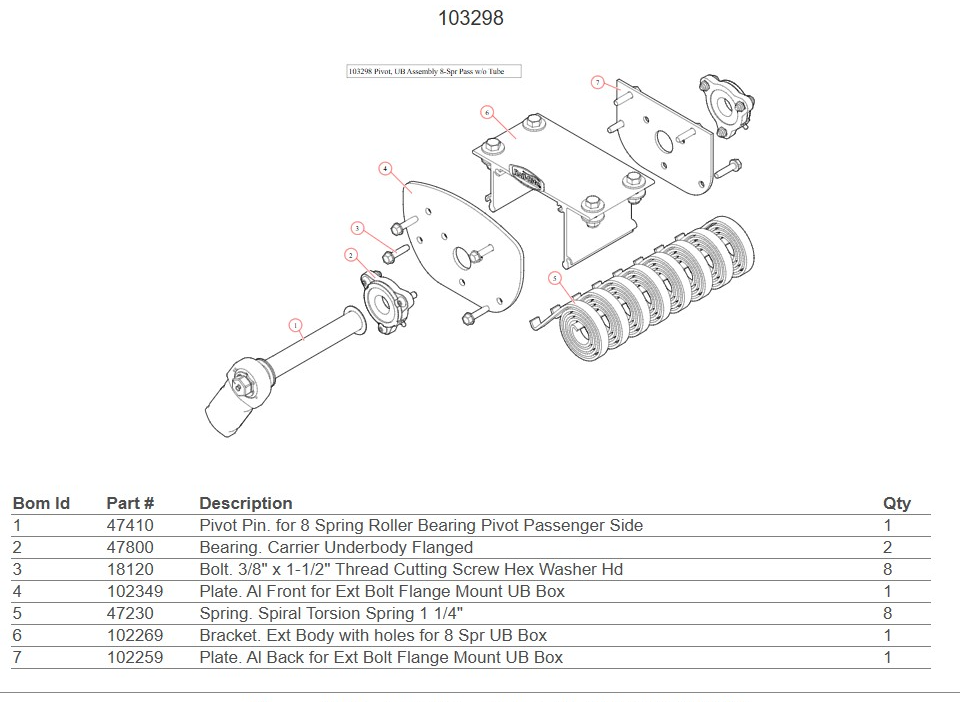

Includes

• (1) 47410 – Pivot Pin for 8-Spring Roller Bearing – Passenger Side
• (2) 47800 – Carrier Underbody Flanged Bearings
• (8) 18120 – 3/8″ × 1-1/2″ Thread Cutting Hex Washer Head Bolts
• (1) 102349 – Aluminum Front Plate for Ext Bolt Flange Mount UB Box
• (8) 47230 – 1-1/4″ Spiral Torsion Springs
• (1) 102269 – External Body Bracket with Holes for 8-Spring UB Box
• (1) 102259 – Aluminum Back Plate for Ext Bolt Flange Mount UB Box

Product Overview

• Genuine OEM Roll·Rite replacement part
• Driver-side pivot assembly for 8-spring underbody tarp systems
• Supplied without pivot tube
• Complete pivot box with springs and mounting hardware
• Heavy-duty construction for dependable tarp system performance
