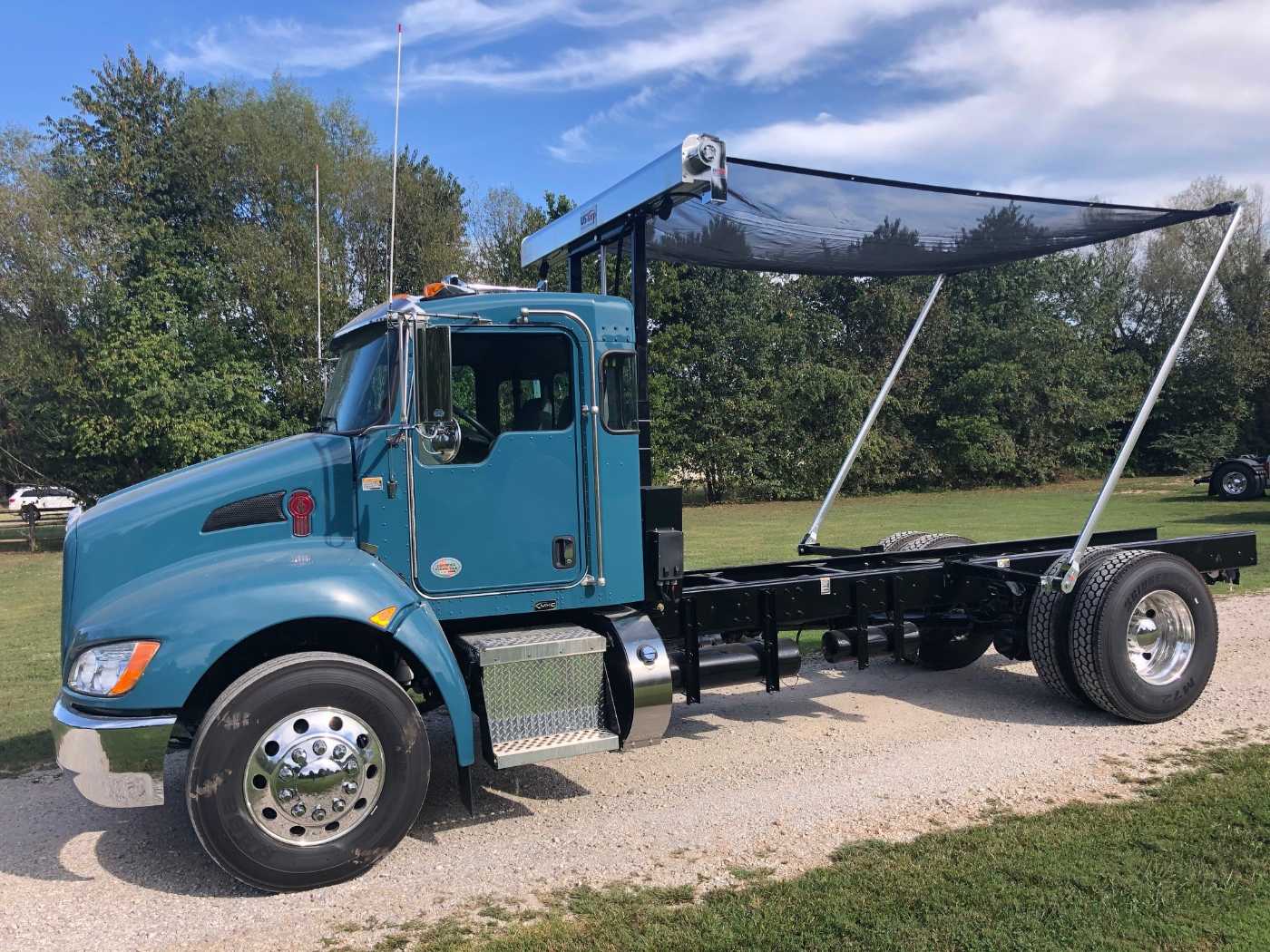

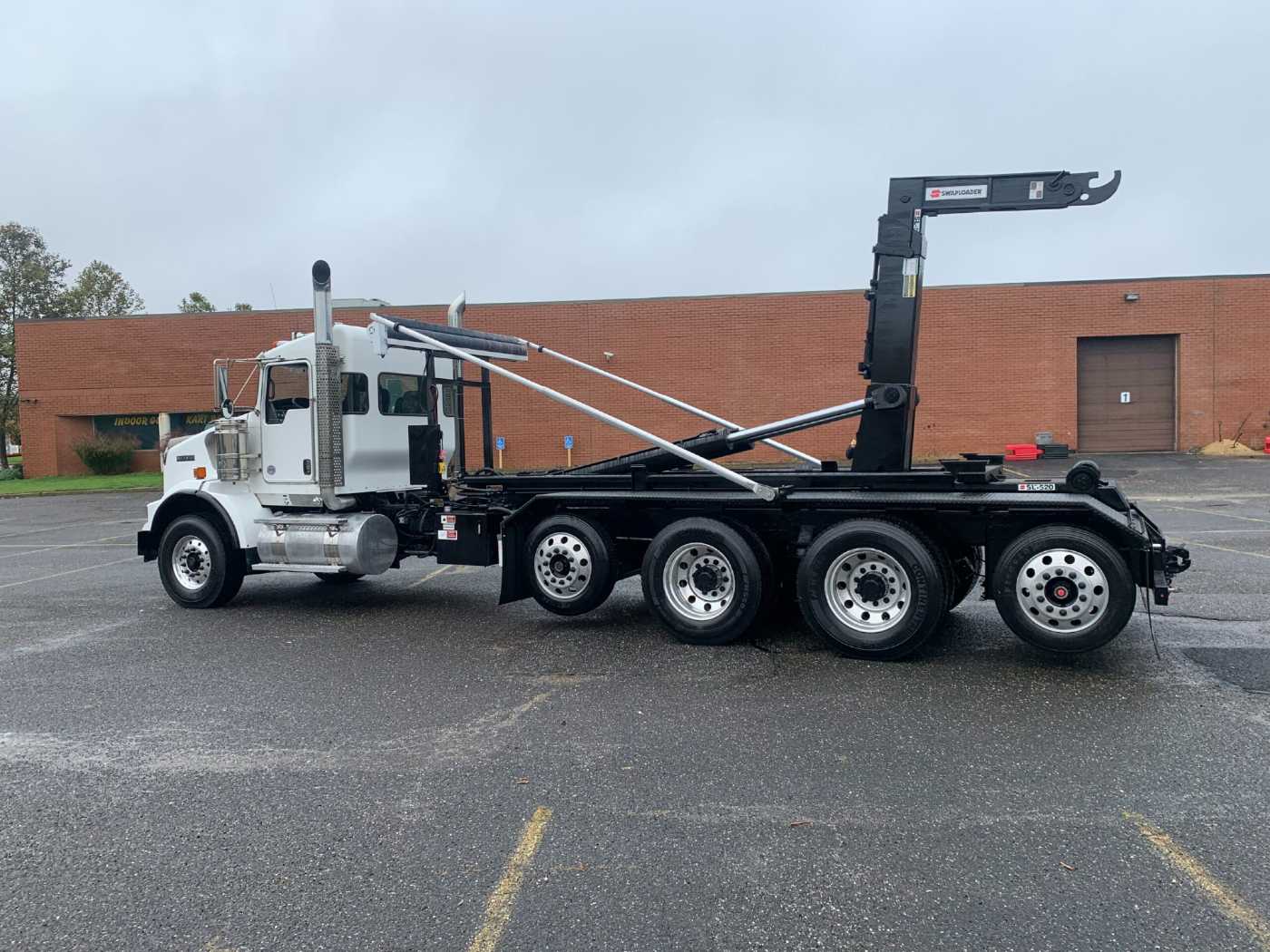

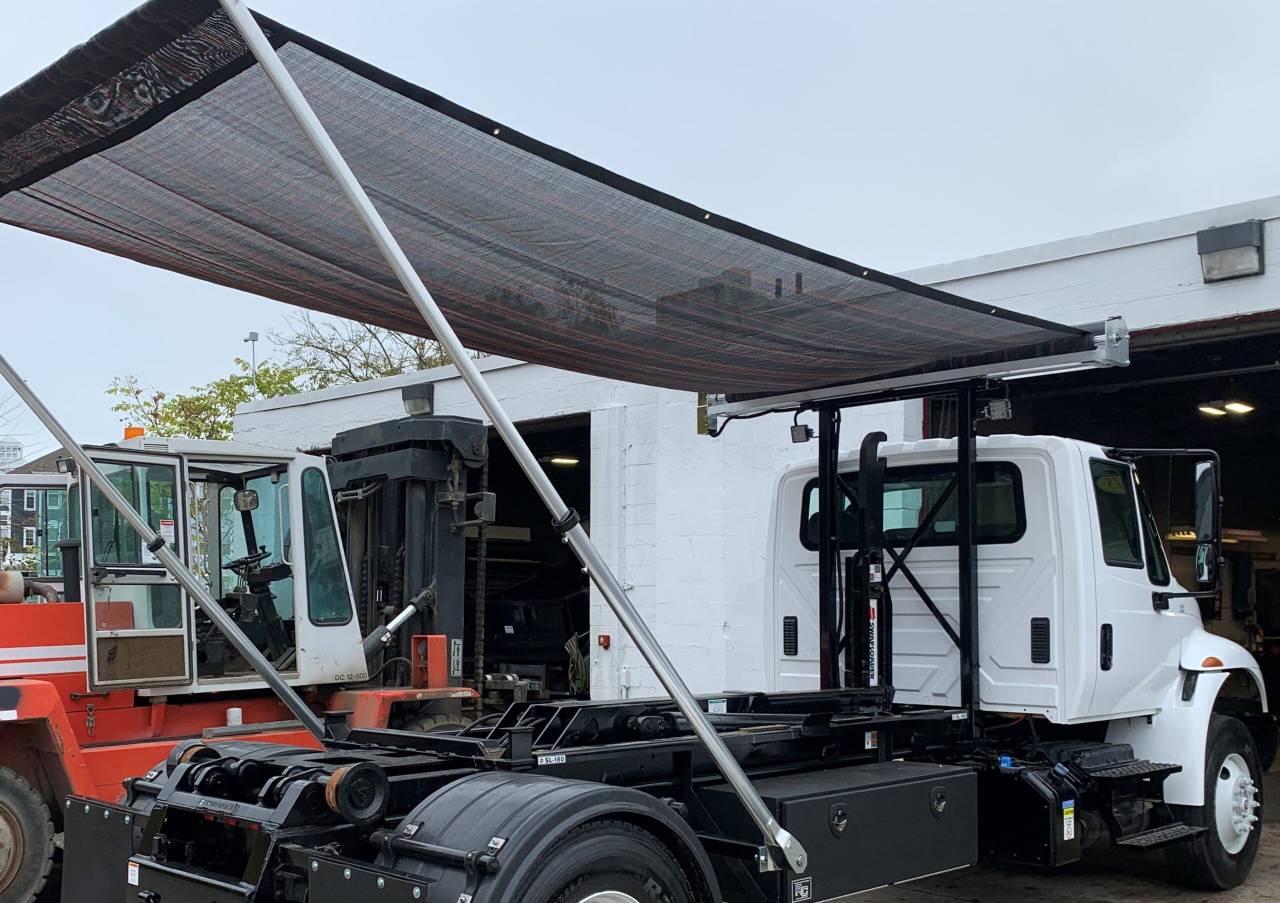

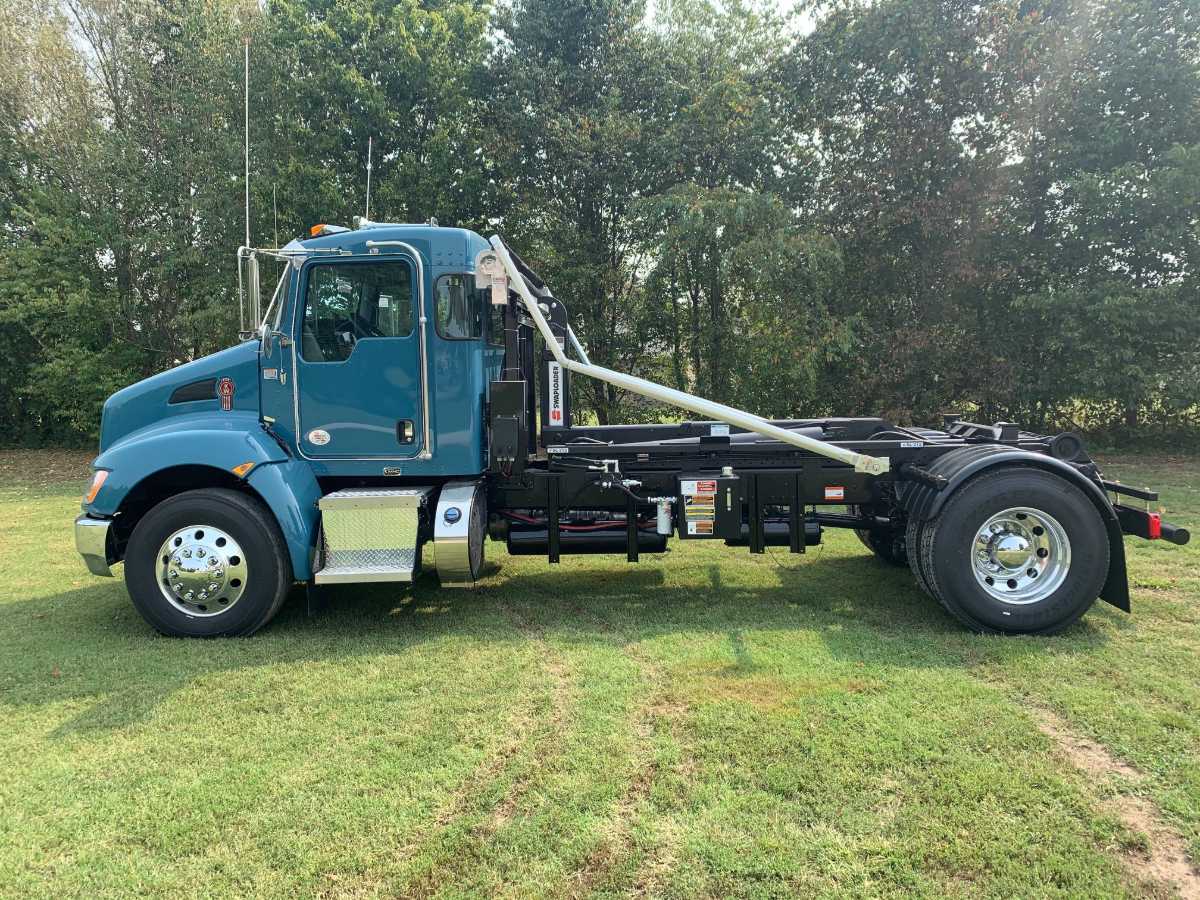

The US Tarp Roll Off Tarp System lineup delivers reliable load coverage for roll-off and hooklift trucks. Available in stationary, single-stage hydraulic, and dual-stage hydraulic gantry configurations, these tarp systems are engineered for durability, easy installation, and long service life. With options in steel or aluminum arms, spring assemblies, and wireless controls, US Tarp systems are trusted nationwide in the refuse, recycling, landscaping, and construction industries.

Below are the detailed specifications for six of the most popular US Tarp gantry models.

Stationary Roll Off Tarp Systems (Fixed Gantry)

16700 – Stationary Lite Pull-Style Gantry with 97″ Wind Deflector

• Designed specifically for Class 3 & 4 trucks with containers up to 14′ long and 5′ tall.
• Low-profile design with only 4″ cab-to-hoist clearance required.
• Pre-assembled base, spring-return tarp axle, and 97″ wind deflector included.
• Lightweight, compact, and ideal for landscaping and municipal fleets.

Best For: Smaller trucks running short containers where space and budget are priorities.

15101-AL4 – Stationary Gantry w/ Aluminum 4-Spring Arm Kit

• Fixed 77″ gantry height for Class 7 & 8 trucks.
• Aluminum 4-spring external mount arms – corrosion-resistant and lighter than steel.
• Powered by US Tarp Slim 12V motor (50:1 gear ratio, 3-year warranty) with rotary switch.
• Covers dump bodies and containers up to 24′ in length.

Best For: Mid-size fleets needing a strong but lighter gantry with reduced maintenance in corrosive environments.

Single-Stage Hydraulic Roll Off Tarp Systems

15100-ST4 – Single-Stage Hydraulic Gantry Assembly

• Adds 36″ of vertical lift for greater reach and clearance.
• Includes steel 4-spring external mount arms for durability.
• Powered by an electric-over-hydraulic 12V power pack.
• Supports containers up to 24′ in length.

Best For: Operators who need added clearance without upgrading to a full dual-stage hydraulic gantry.

15100-AL4-WL – Single-Stage Hydraulic Gantry, Aluminum 4-Spring Arms w/ Wireless Remote

• Same features as the 15100-ST4, but with aluminum 4-spring external arms for weight savings and corrosion resistance.
• Adds wireless remote control, allowing operation from outside the cab.
• 36″ hydraulic lift for easier handling of taller containers.
• Fits dump bodies and containers up to 24′ in length.

Best For: Fleets needing convenience, lighter weight, and remote operation for efficiency.

15100-ST4-WL – Single-Stage Hydraulic Gantry, Steel 4-Spring Arms w/ Wireless Remote

• Same hydraulic design as the 15100-ST4, but with wireless remote control.
• Includes steel 4-spring external arms for rugged performance.
• Provides 36″ vertical lift with hydraulic power pack.
• Covers containers up to 24′ long.

Best For: Heavy-use environments where strength and remote convenience are equally important.

Dual-Stage Hydraulic Roll Off Tarp Systems

14126-AL4-WL – Dual-Stage Hydraulic Gantry, Aluminum 4-Spring Arms w/ Wireless Remote

• Two-stage telescopic gantry with up to 88″ vertical lift – maximum clearance for heaped or oversized loads.
• Features aluminum 4-spring arms, lightweight and resistant to corrosion.
• Includes wireless remote control for safe, flexible operation.
• Built with heavy-duty steel housing and a hydraulic power pack.
• Handles containers up to 24′ in length.

Best For: Large fleets hauling heaped, tall, or oversized containers needing maximum reach and flexibility.

Key Features Across All Models

• Heavy-Duty Steel Frames with black powder-coated finish.
• Spring-Return Tarp Axle for reliable tarp operation.
• Aluminum or Steel Arms available depending on weight and corrosion needs.
• Slim 12V Motor (50:1, 3-year warranty) on electric units.
• Hydraulic Lift Options on single- and dual-stage models for extra clearance.
• Wireless Remote available on select models for safer operation.

Specs & Features Comparison

Why Buy US Tarp Roll Off  Tarp Systems?

• Proven U.S. Manufacturer trusted across refuse, recycling, construction, and landscaping industries.
• Wide Range of Options – from light-duty pull-style gantries to advanced dual-stage hydraulic systems.
• Durability First – powder-coated steel frames, premium aluminum arms, and reliable motors.
• Ease of Installation – many systems ship pre-assembled, saving time in the shop.
• Scalable Coverage – solutions for 14′ containers up to 40-yd boxes.
