CRANK AND PULL Dump Trailer Tarp Kit is a manual cab level crank kit that is perfect for Landscape trailers and medium/light duty truck bodies.

If you’re in search of a dump trailer tarp kit that is both affordable and easy to operate, look no further—this is the right choice for you. Experience unmatched simplicity with this kit, ensuring a hassle-free and efficient solution.

• Mounts on the front of any length box
• Fits box widths up to 8′ 6″; 103″ aluminum extruded standard tarp axle is 1-1/2″ in diameter and can be cut to whatever width you need
• Can be used with tarps up to 40′ long
  NOTE: Tarps ordered for use with this system should measure at least 4″ less than the width of your mounted axle

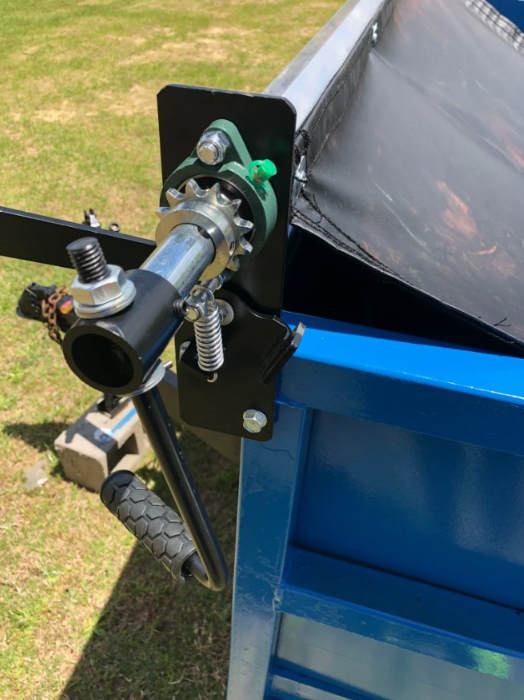

• Spring-loaded, break-away crank handle

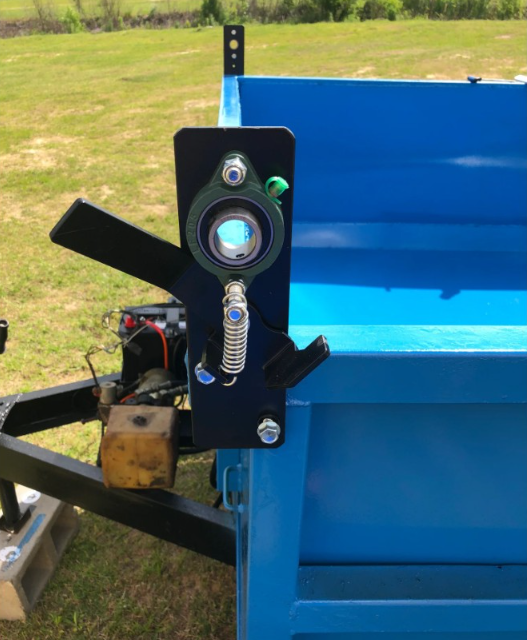

• Steel powder-coated mounting brackets and sealed bearings.

STANDARD FEATURES:

• Includes All Necessary Installation Hardware
• Manual Wind-up
• Expands from 60″ to 104″ Wide
• Fits Any Body Length
• Quick and Easy Tarp Replacement

This dump trailer kit comes in two variations to fit your requirements:

• T-CABLCK4 – Full Kit; cab level mounted; cranks at ground level – use for high walled dump bodies
• T-CABLCK298 – Full Kit; cranks at ground level – Most Popular

Downloads PDF:

CRANK AND PULL  Installation Manual

* The dump trailer tarp kit cannot be converted to an electric external mount kit or used with springloaded arms. If you think you might want to go electric one day, contact us about options that can be converted.
