Rill Rite DC200 series systems feature a Roll Rite External Mount stationary pivot that is best for hooklift or roll offs trucks hauling same to similar sized containers. Reduce load interference and increase operator safety with key-fob remote controls that allow 360° walk-around to monitor tarp operation from any ground position.  Tarp standing where you want to so you can clearly see what you are covering.

Roll Rite DC 200 series tarp systems come in three different variations:

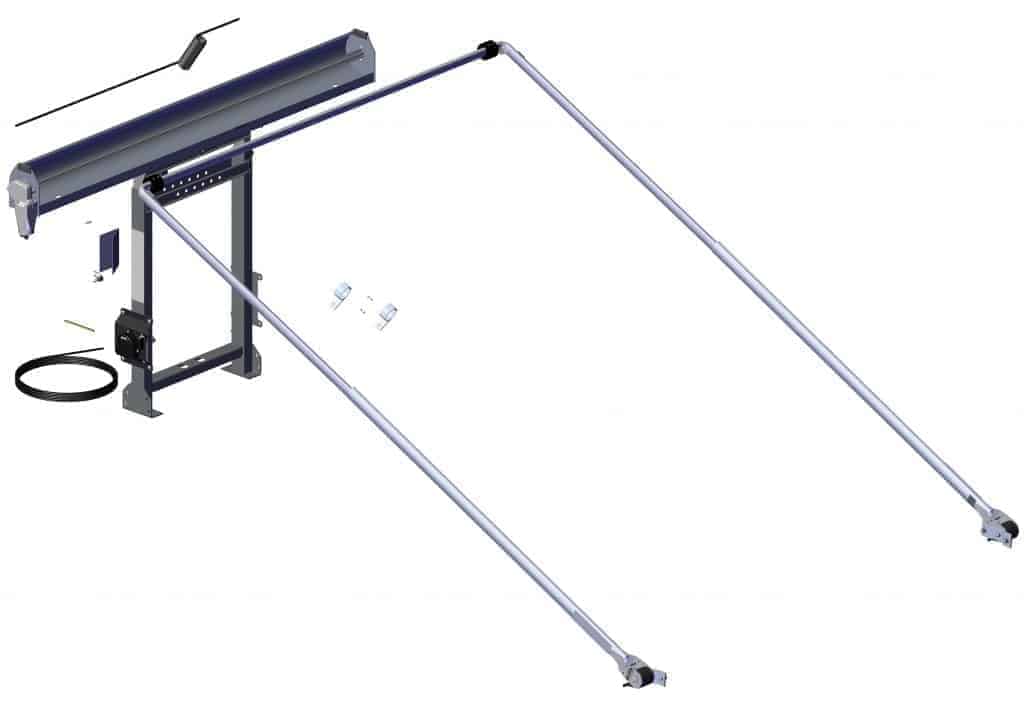

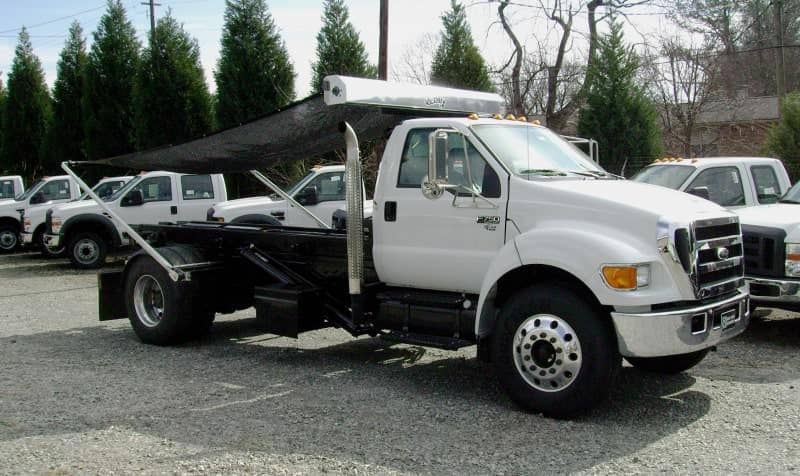

DC200 Stationary System (Part # 69200) – For Small Trucks with Same Size Containers Using up to 24 feet of Tarp.

• DC200 features:
• TarpMaster® 98” Tarp Spool with Integrated Housing
• Powder Coated Stationary Tower
• External Pivot Mount Set
• Single Function RF Controller with 1 Keyfob
• Wide Tarp Bow Set
• Optional: Worklights (standard on DC203/DC204)
• Estimated System Weight: Under 500lbs

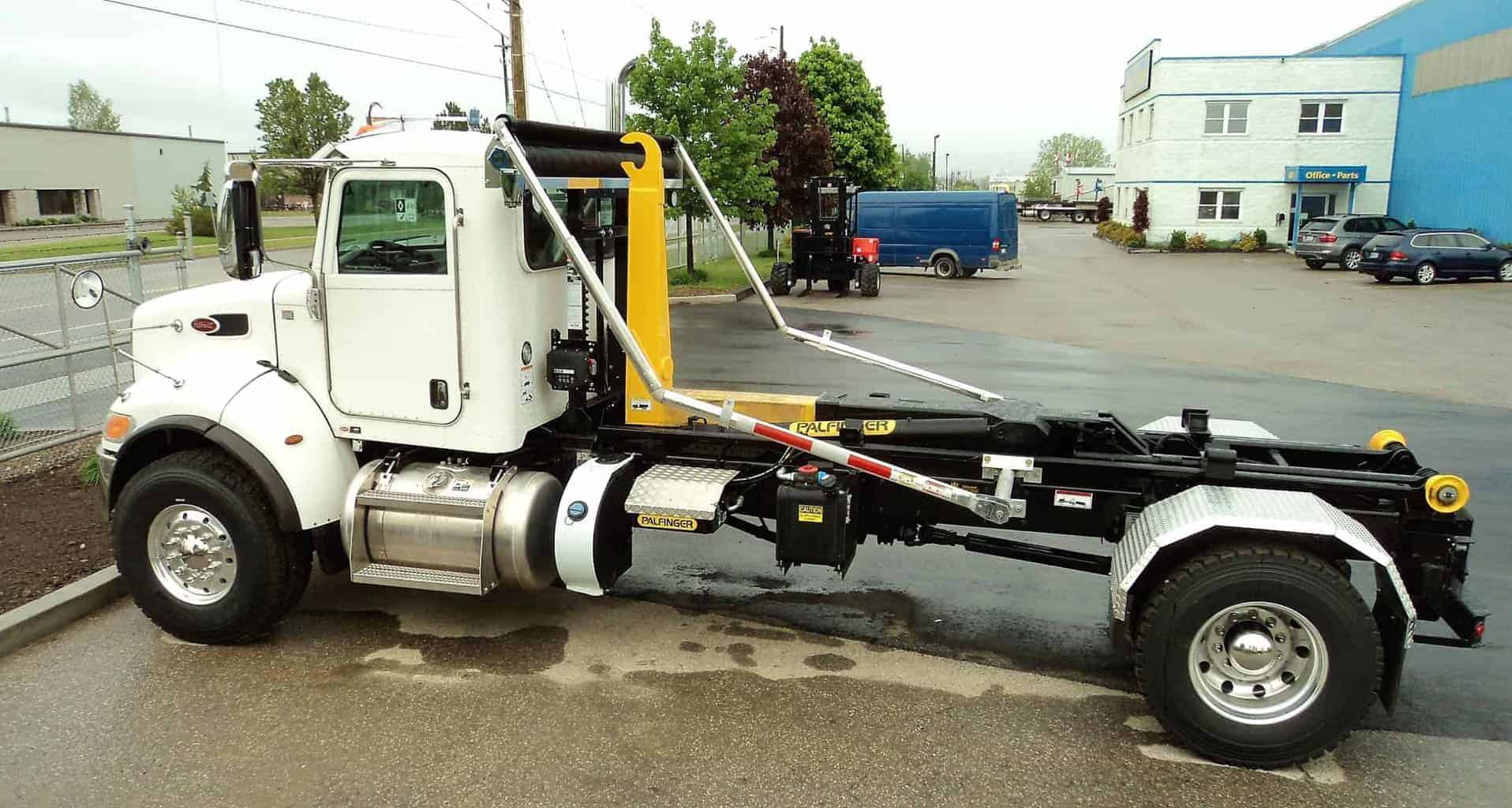

DC203 Adjustable System (Part # 69203) – For Single Axle Trucks with Similar Size Containers Using up to 24 feet of Tarp.

• DC203 features:
• TarpMaster® 98” Tarp Spool with Integrated Housing
• Worklights
• Powder Coated Adjustable Tower
• External Pivot Mount Set
• Single Valve Hudraulic Pump with Black Box™ Remote w/ 2 Keyfobs
• Wide Tarp Bow Set
• Estimated System Weight: Under 550lbs

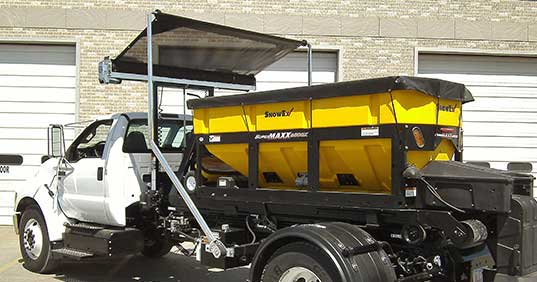

DC204 Pickup Chassis System (Part # 69204) – For Pickup Chassis Using up to 24 feet of Tarp.

• DC204 features:
• TarpMaster® 98” Tarp Spool with Integrated Housing
• Worklights
• Powder Coated Adjustable “LOW” Tower – Low Tower uses Side Frame Tower Mount Brackets designed specifically for Class 3-5
  trucks for shorter tower starting height to cover smaller containers
• External Pivot Mount Set
• Single Function RF Controller with 1 Keyfob
• Wide Tarp Bow Set
• Estimated System Weight: Under 550lbs

PDF Downloads:

• DC Series Overview
• DC Series Owner’s Manual
• DC Series Installation Instructions
• DC Series – Space Requirement
• DC Series – Cab Differences (Single-Axle Trucks)
• DC200 (Part # 69200) Part List
• DC203 (Part # 69203)  Part List
• DC204 (Part # 69204) Part List
• DC204 Series Single Page Overview
