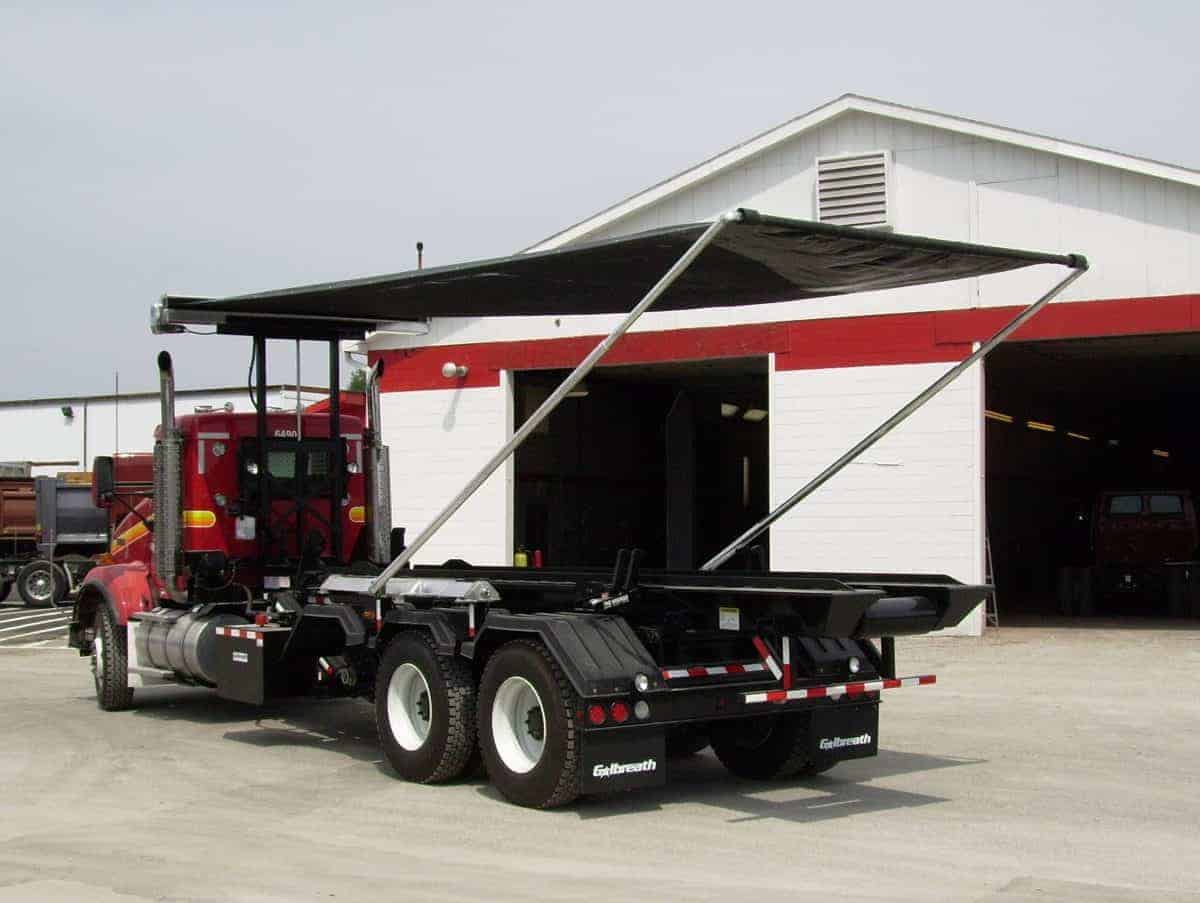

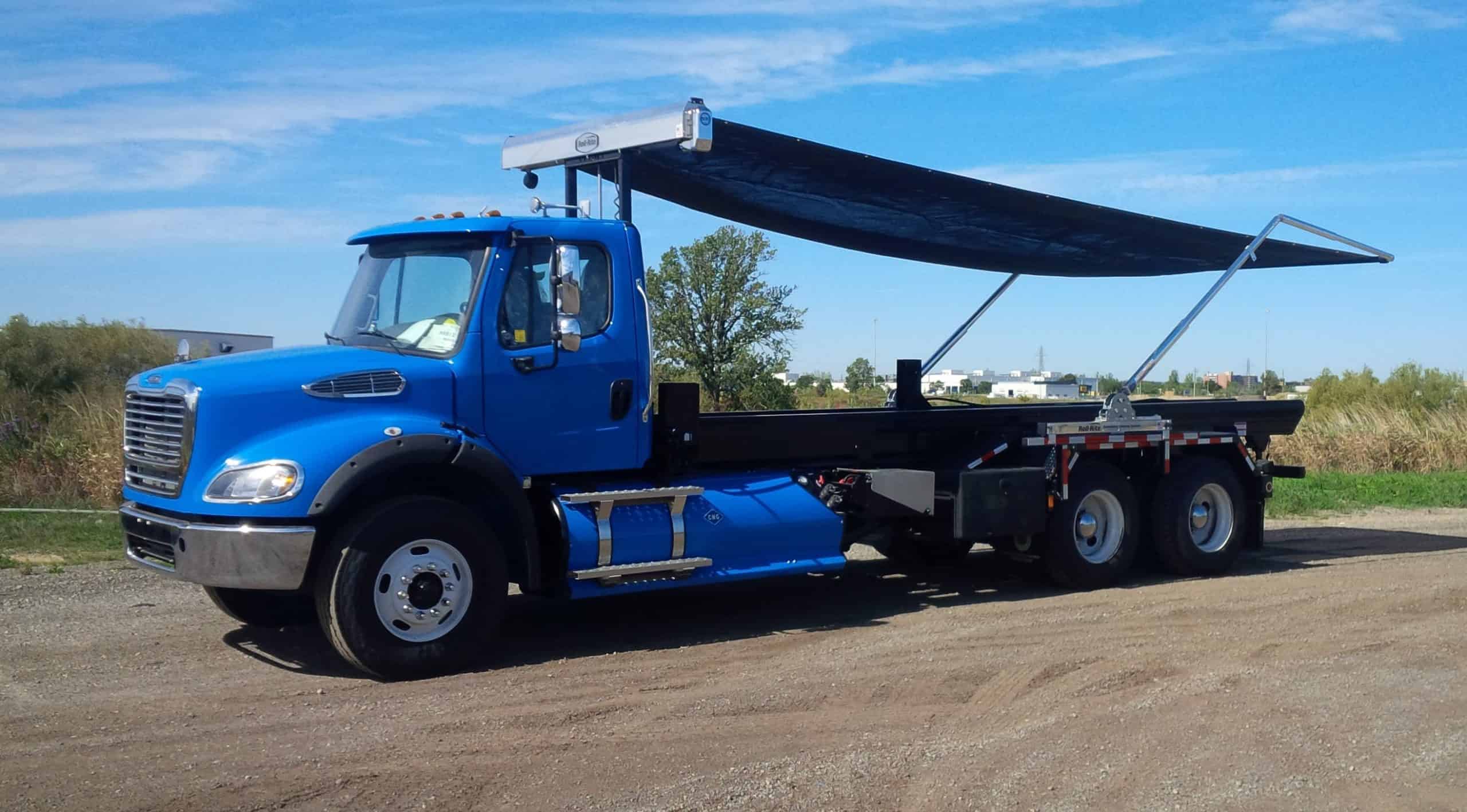

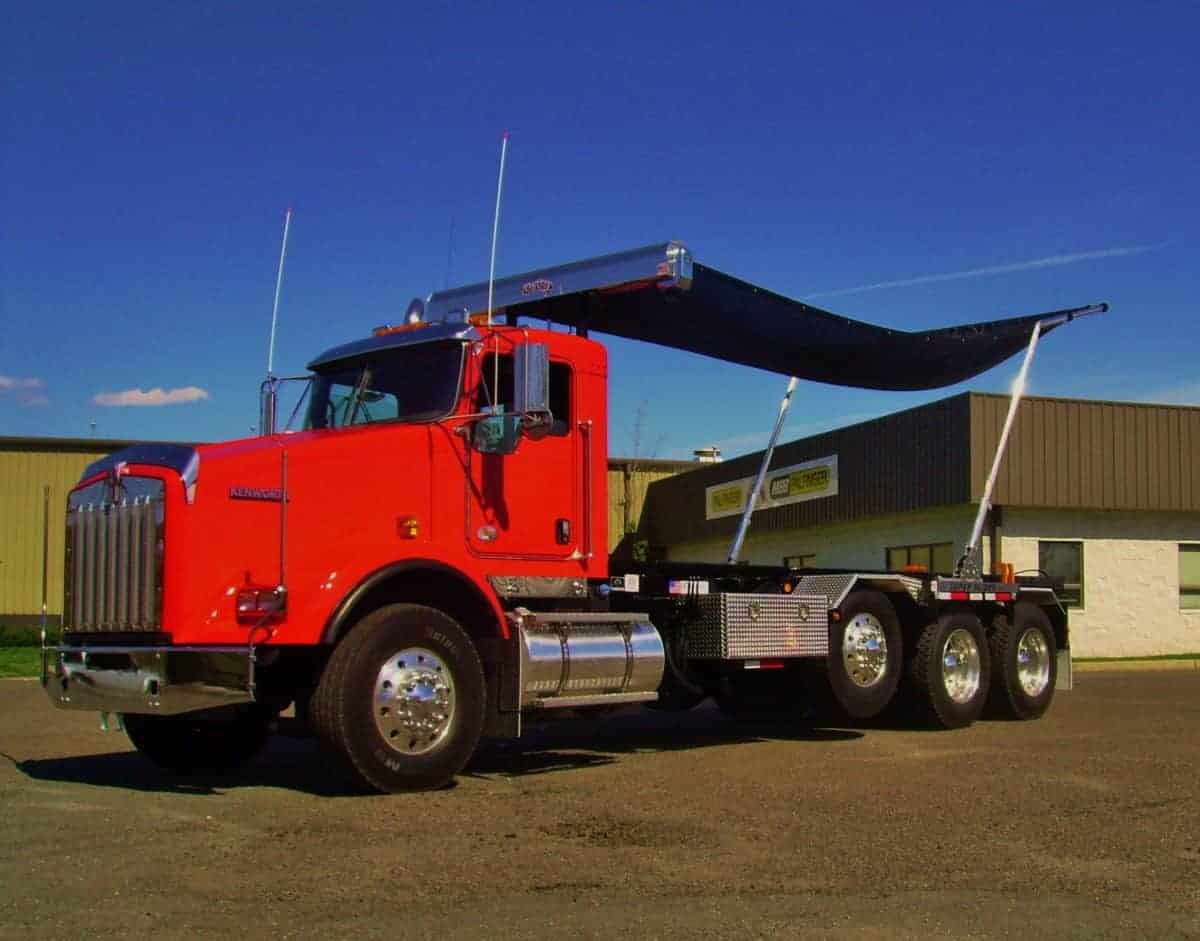

The Roll-Rite DC350 Series is a premium automatic tarp system designed for multi-axle hoists and hook-lift trucks. Built for versatility, it accommodates containers up to 40 yards and tarps up to 30 feet, providing reliable load coverage in demanding applications.

Key Features:

• Adjustable Tower – Elevates from 62” to 98” for optimal coverage. (DC352 features a two-stage tower for added height.)

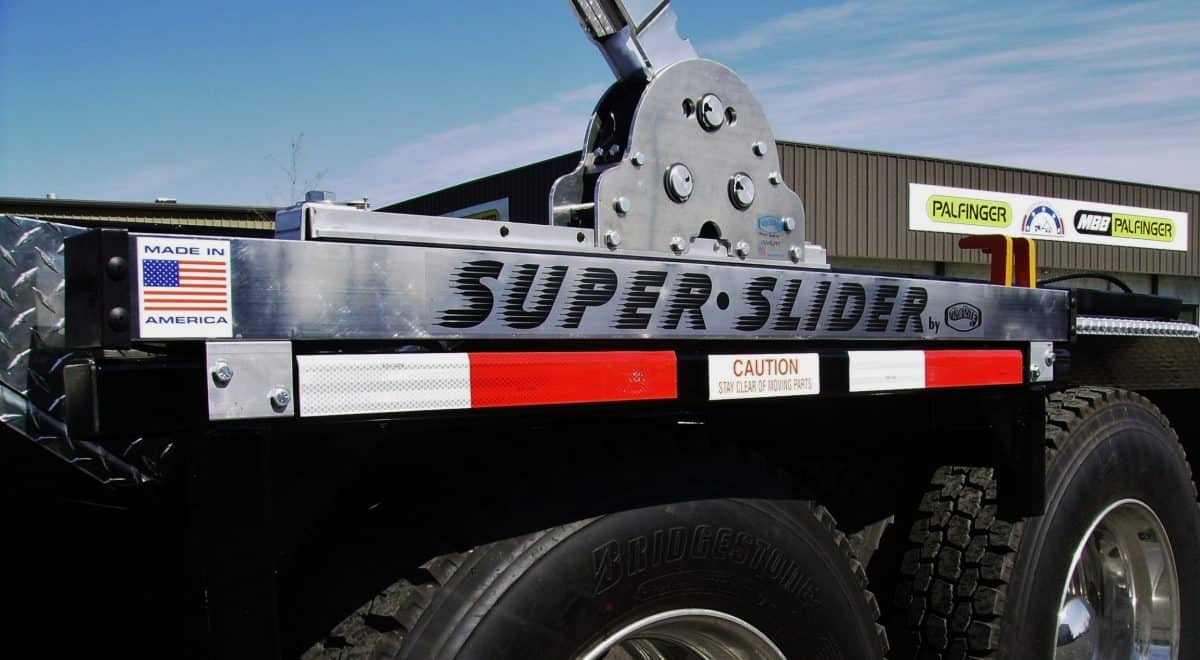

• Super Slider Pivot Mount – Allows 20” of travel and 180° rotation for flexible container accommodation.
• Super Duty Motor & Wireless Remote – Ensures powerful performance and convenient operation.
• Polished Aluminum Swing Arms & Tarp Housing – Lightweight yet durable construction.
• LED Work Lights – Provides visibility for safer operation.
• Electric-Over-Hydraulic Power Unit – Self-contained for smooth functionality.

Available Variations:

• DC350 – Single-Stage Adjustable Tower, Super Slider Pivot System, and Wide Bow Set for reliable load coverage.
• DC352 –  Dual-Stage Tower for extended height clearance, Super Slider Pivot System, Wide Bow Set, and 45° Offset Arms.
• DC358 – Single-Stage Tower, Super Slider Pivot System, Wide Bow Set, 45° Offset Arms, and a 96″ x 30′ Reversible Tarp for maximum coverage.

With a narrow 3” pivot profile, 103.5” inside arm width, and a strong yet lightweight design, the DC350 Series ensures maximum fender clearance and efficient tarp operation. Designed for durability and ease of use, this system is the ultimate solution for secure load coverage.

PDF Downloads:

• DC350 (Part #69350) Part List
• DC352 (Part #69352) Part List
• DC358 (Part # 69358) Part List
• Brochure PDF
• DC350 Overview
• DC Series Installation Manual
