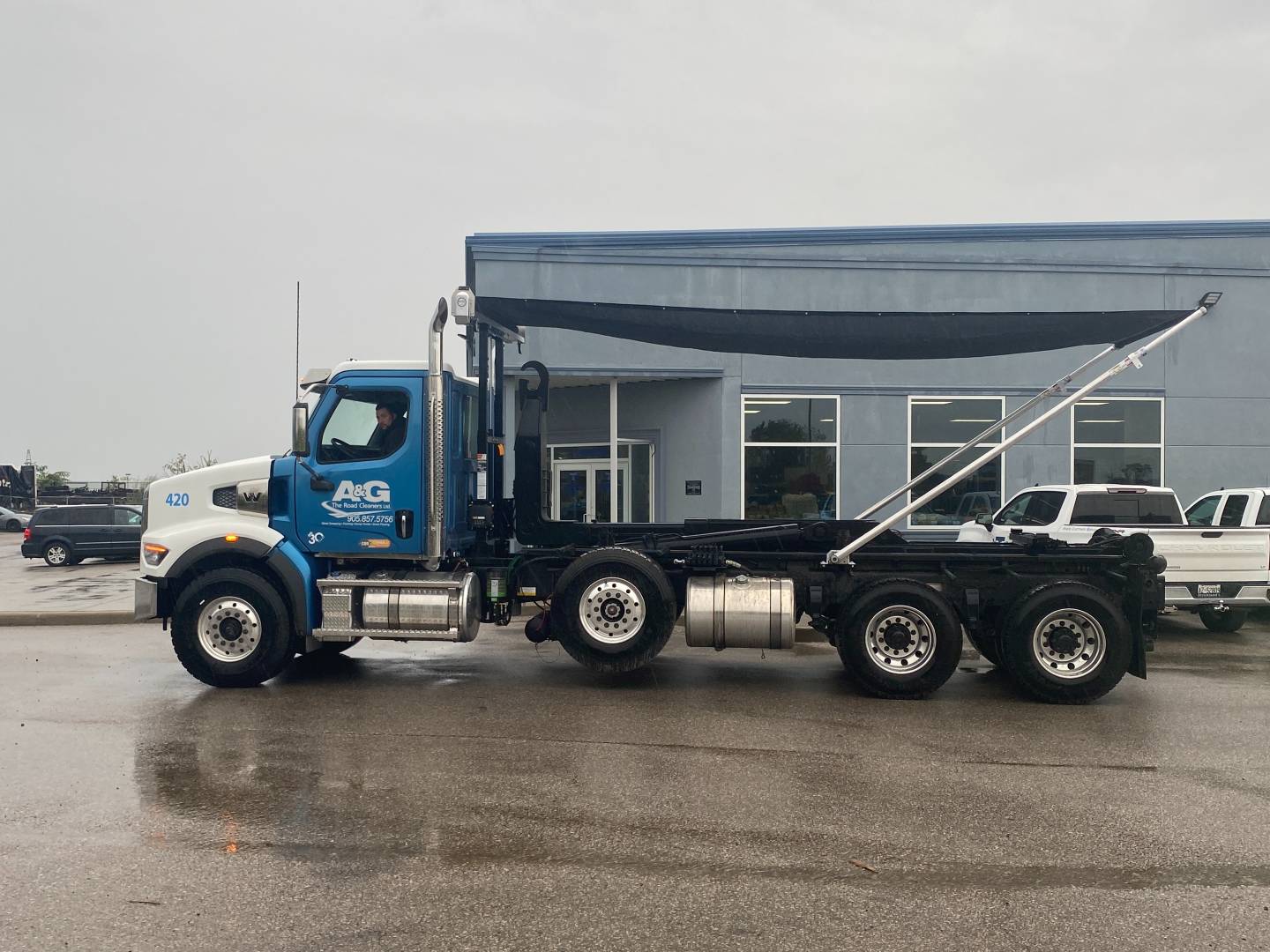

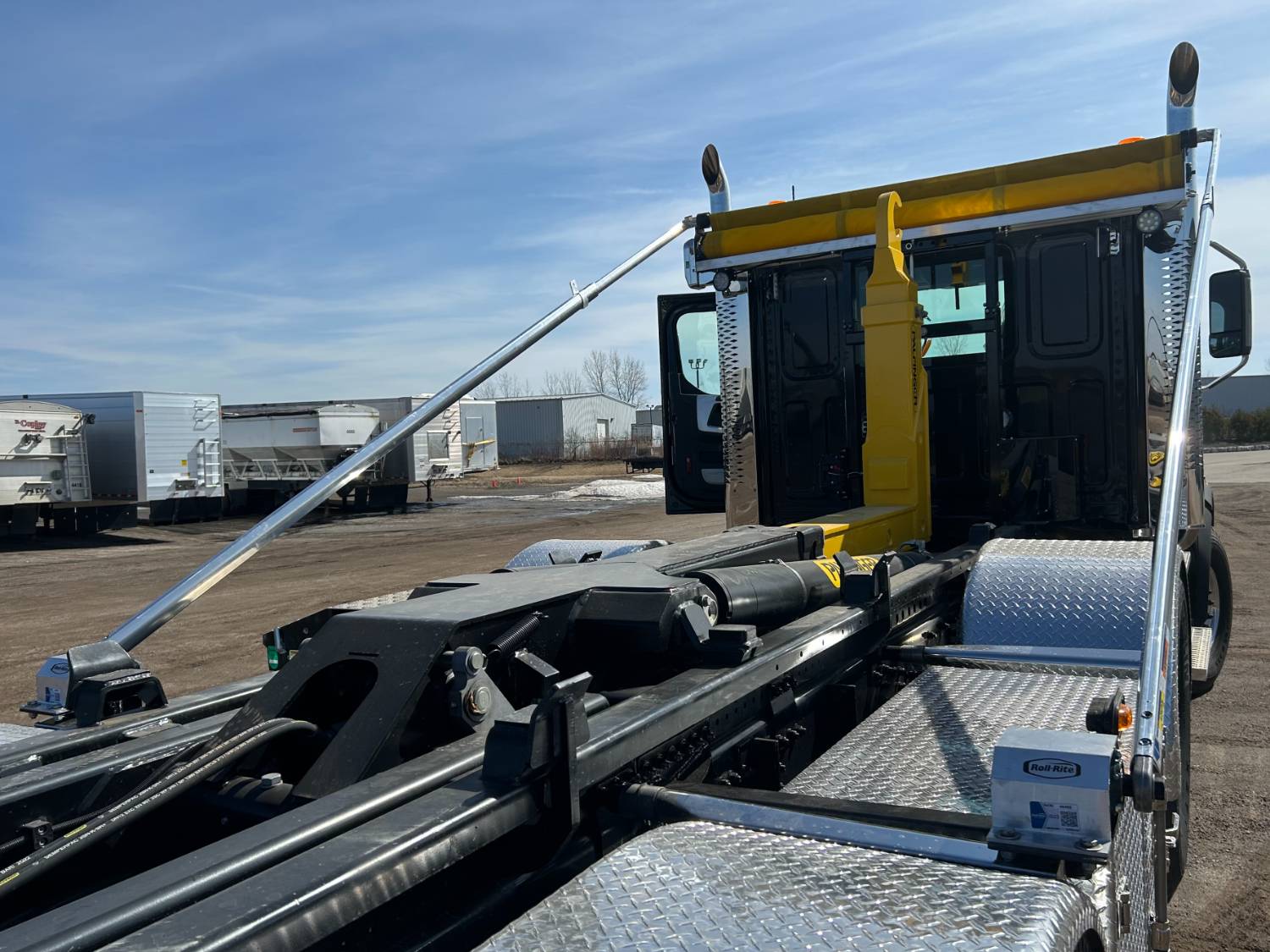

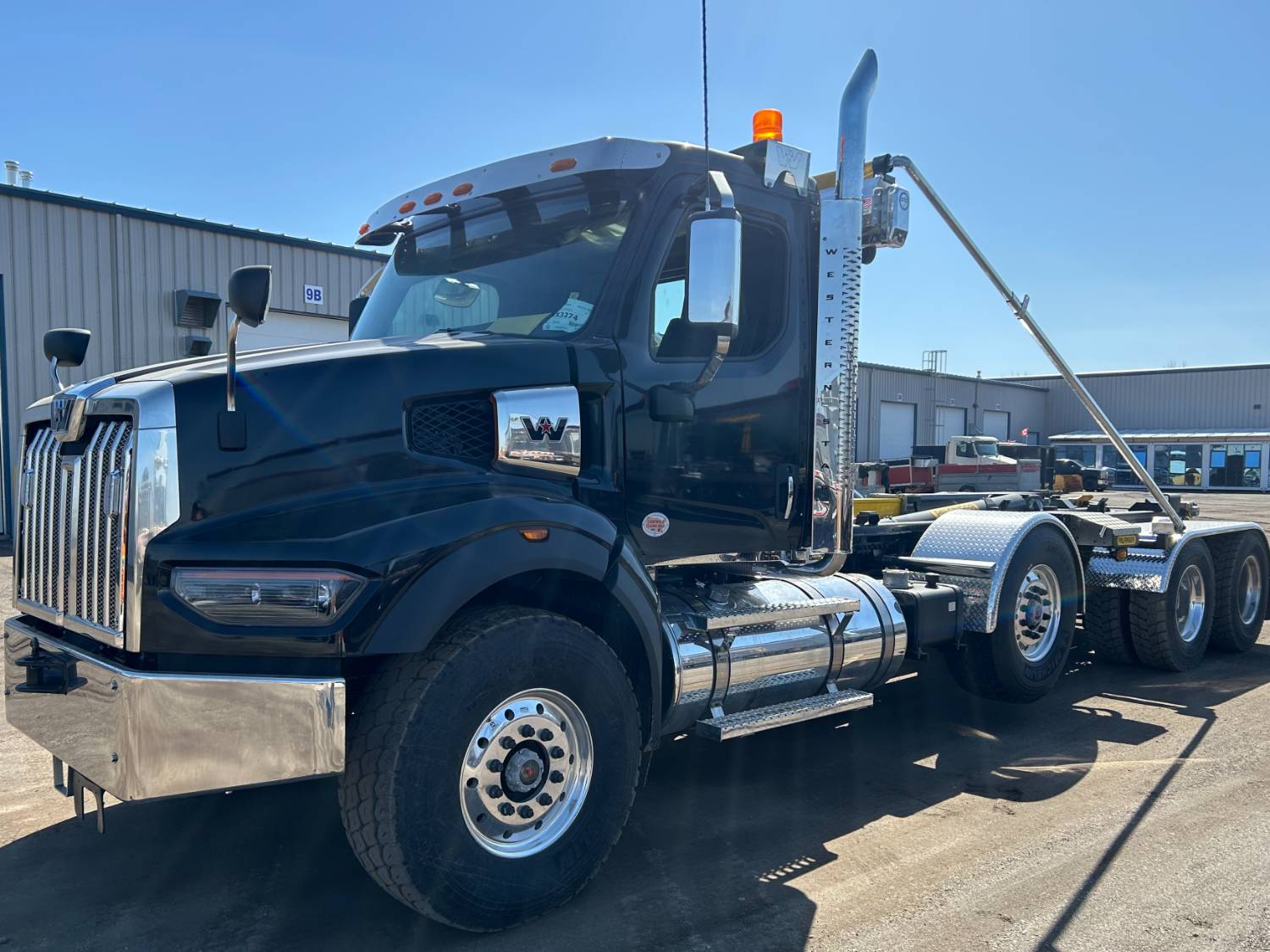

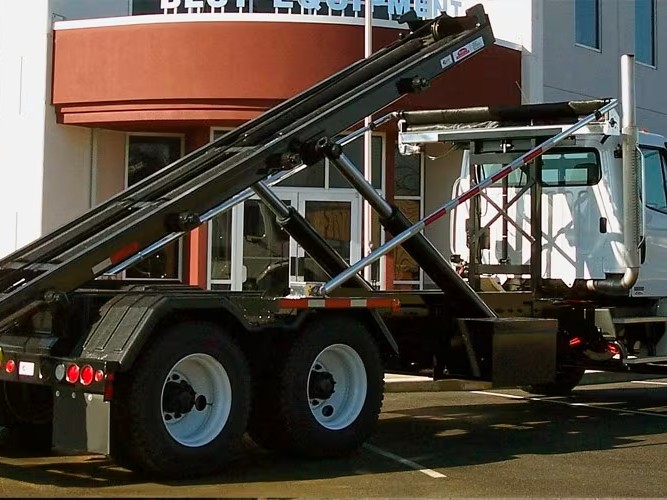

The Roll-Rite DC400 Series Roll-Off Tarp System is designed for hook-lift and roll-off trucks hauling similar-sized containers using up to 30 feet of tarp. Built for durability and efficiency, it features a patented roller bearing Top Mount stationary pivot, ensuring smooth operation and minimal load interference.

With a key-fob remote control, operators can monitor tarp deployment from any position, providing a 360° walk-around view for safer, more precise coverage.

Available Variations:

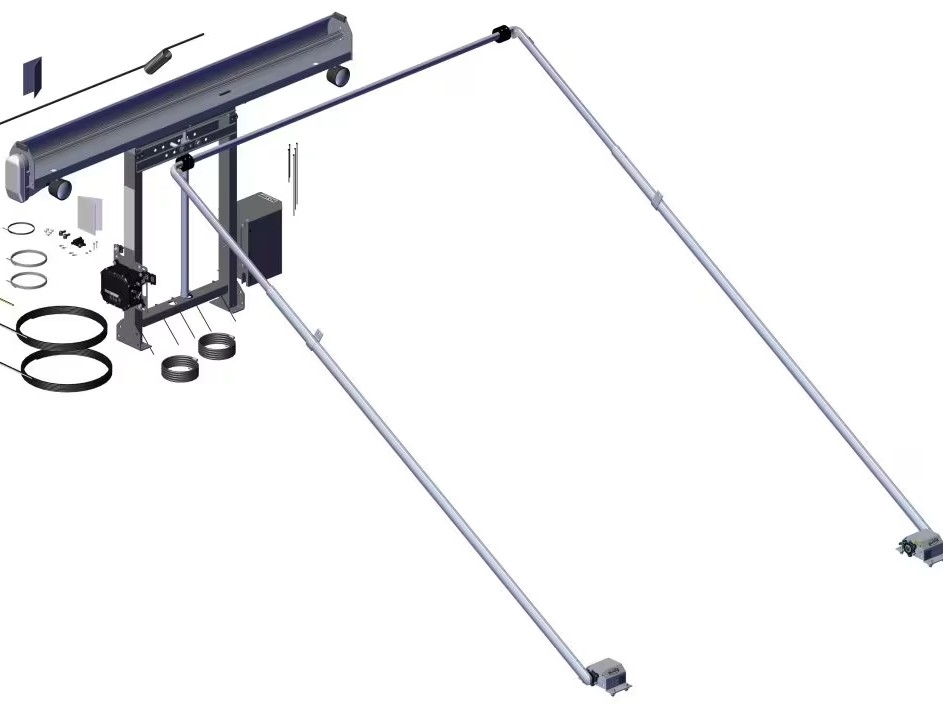

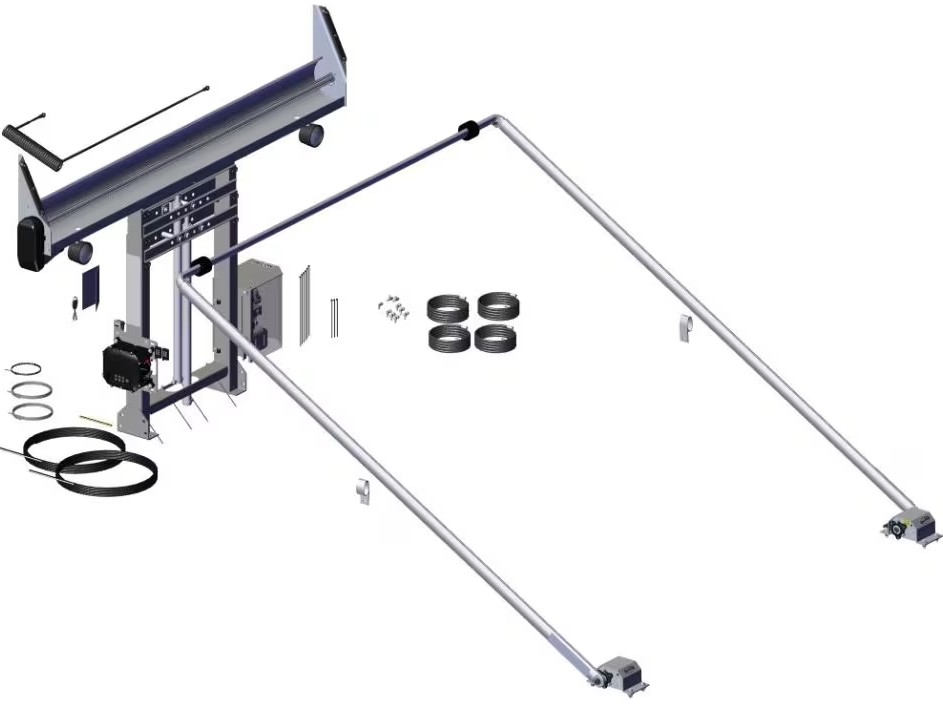

• DC400 (Part #69400) – SD Adjustable Tower, 6-Spring Top Mount Pivot, Wide Bow Set
• DC402 (Part #69402) – SD Dual Stage Tower (extends up to 11′), 6-Spring Top Mount Pivot, Wide Bow Set

Key Features:

• Super Duty Gear Motor – 98” tarp spool with integrated housing for reliable performance
• Adjustable Tower – Powder-coated for long-lasting durability
• Stationary Top Mount Pivot Set – Greaseable roller bearing design for smoother operation
• Wide Tarp Bow Set – Ensures full load coverage
• Wireless Power Pack – Single valve hydraulic pump with Black Box™ remote control & 2 keyfobs
• LED Work Lights – Enhanced visibility for night or low-light operation

Optional Upgrades:

• Tower Mounting Brackets – Choose between U-Bolt or Side Frame styles
• Arm Mounting Brackets – Secure and reinforced arm installation
• 45-Degree Arm Elbow – Improves tarp positioning and coverage
• Mesh Tarp Options – Available for added durability

The Roll-Rite DC400 Series Roll-Off Tarp System is engineered for efficiency, durability, and operator safety, making it the ideal solution for roll-off and hook-lift trucks that need reliable, automated tarping.

PDF Downloads:

• DC400 Brochure PDF
• DC Series Overview
• DC Series Installation Manual
• DC400 (Part #69400) Part List
• DC402 (Part #69402) Part List
