Description

The Roll-Rite DC Trailer Series is engineered for heavy-duty roll-off trailers hauling detachable containers from 10 to 50 cubic yards. Designed for durability and efficiency, these automatic tarp systems provide secure load coverage, reduce operator effort, and enhance safety with remote-controlled operation.

Key Features:

• Super Duty Electric Gear Motor – Industry-leading power for reliable tarping.

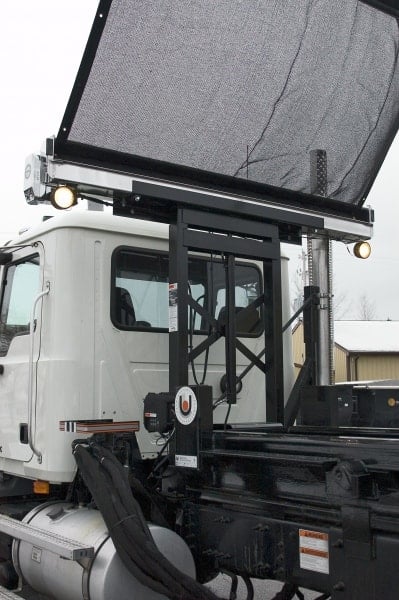

• Pre-Assembled Tower & Tarp Spool Housing – Ships pre-wired, pre-tested, and ready for fast installation.
• Black Box™ Wireless Controls – Operate the system remotely with a keyfob for 360° visibility.
• High-Strength Aluminum Arms – Lightweight, corrosion-resistant, and polished for durability.
• Adjustable Pivot Mounts – Designed to accommodate various container sizes while minimizing load interference.

Available Variations:

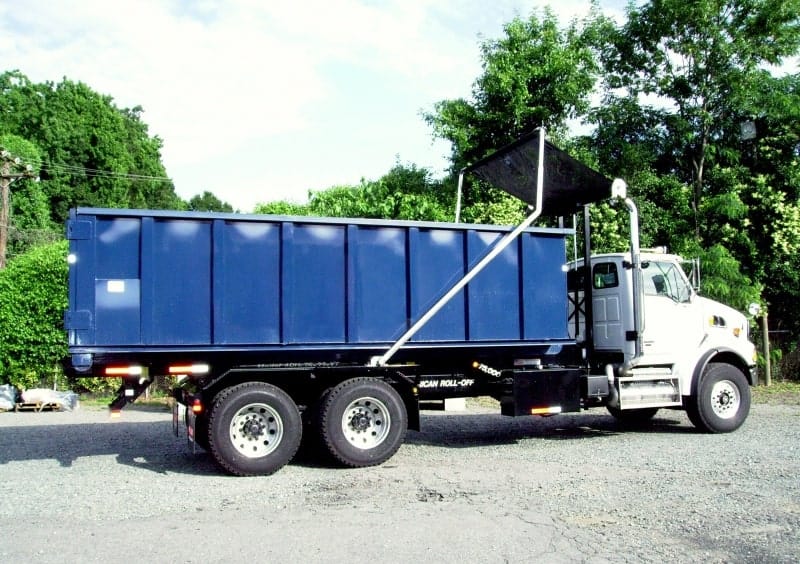

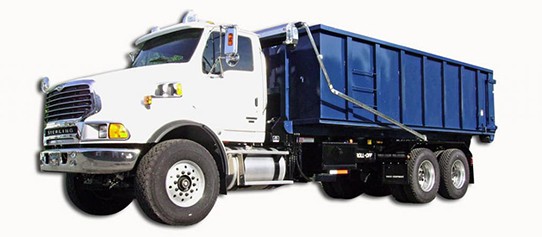

• DC400 – For trailers with up to 30′ of tarp. Equipped with a SD Adjustable Tower, 6-spring top-mount pivot, and Wide Bow Set.
• DC422 – Fits trailers with 42′ to 46′ of tarp. Equipped with a SD Dual Stage Tower, 12-spring, 160″ top-mount extreme-duty pivot, and Extreme Bow Set.
• DC426 – Ideal for trailers with 46′ to 57′ of tarp. Features a SD Dual Stage Tower, 16-spring, 22′ top-mount extreme-duty pivot, and Extreme Bow Set.
• DC428 – Best for trailers with 32′ to 42′ of tarp. Includes a SD Dual Stage Tower, 8-spring, 16′ top-mount pivot, and Wide Bow Set.

Optional Upgrades:

• Tower Mounting Brackets – Choose between U-Bolt or Side Frame styles
• Arm Mounting Brackets – Secure and reinforced arm installation
• 45-Degree Arm Elbow – Improves tarp positioning and coverage
• Mesh Tarp Options – Lightweight, breathable tarp for efficient load coverage.

Built for long-lasting performance, the Roll-Rite DC Trailer Series offers superior load protection and easy operation, making it the go-to choice for roll-off trailer operators.

PDF Downloads:

• DC400 Brochure PDF
• DC Series Overview
• Roll Rite DC Trailers Overview
• DC Series Installation Manual
• DC400 (Part # 69400) Part List
• DC422 (Part # 69422) Part List
• DC426 (Part # 69426) Part List
• DC428 (Part # 69428) Part List

Have Any Questions? Call Our Team at 1-855-851-4700!
